Plant cylinder subtype

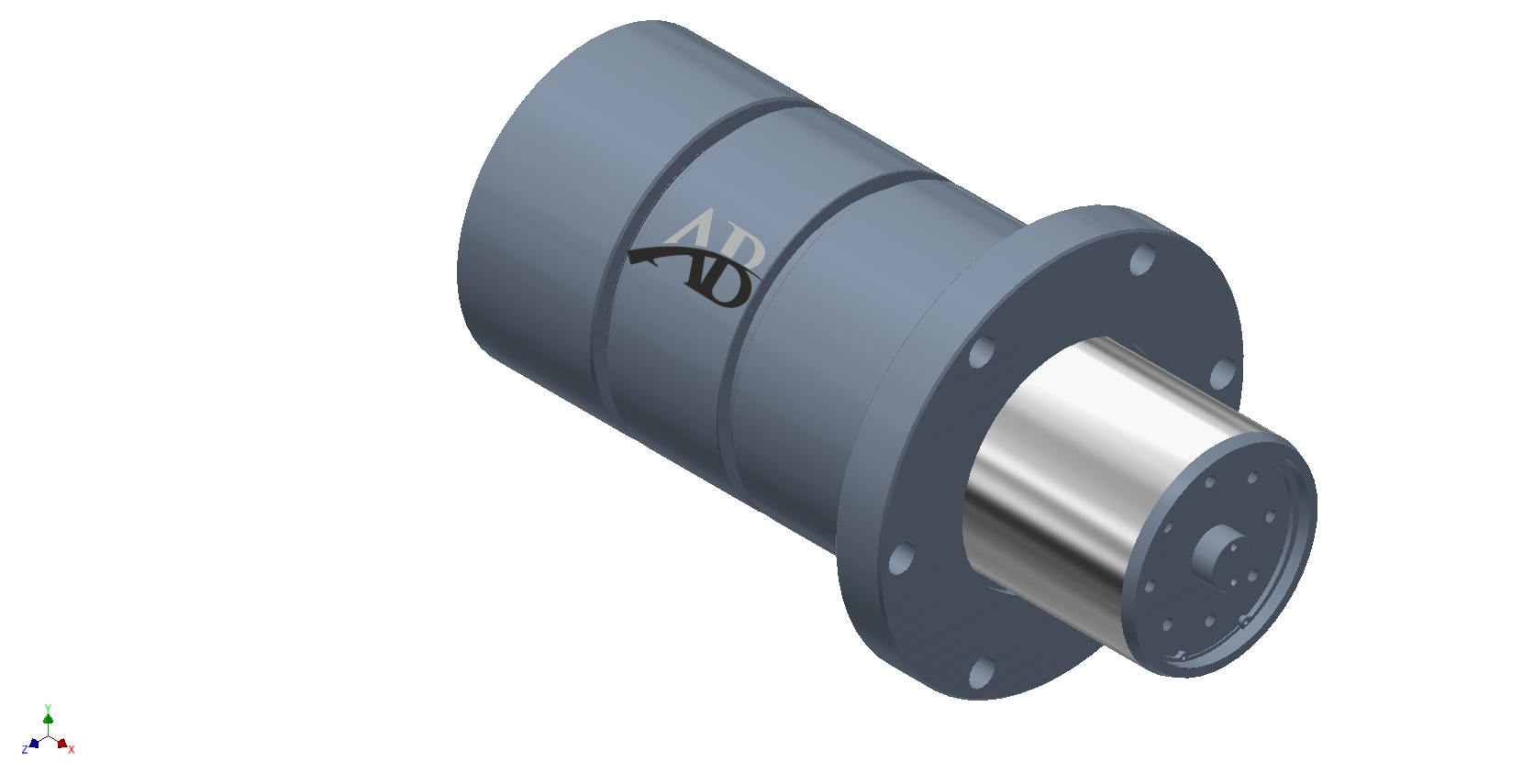

Buffer Cylinder
Application-engineered for demanding process-plant duty.
Buffer and deceleration cylinders absorb extreme kinetic energy at wagon tippler docking points, ladle transfer stops, and crane end-travel positions.
6 engineering parametersAlternate Views:
Application detail
Designed around plant conditions.
Features multi-orifice progressive hydraulic damping, internal accumulator recharge, and impact-resistant strike faces engineered for millions of arrest cycles.
Final bore, stroke, mounting, material and seal selection are confirmed against the approved drawing and operating duty.
Technical range
6 parametersBuffer Cylinder specifications
| Parameter | Indicative specification |
|---|---|
| Bore Size | 100-300 mm |
| Stroke Length | 100-500 mm |
| Working Pressure | Up to 250 bar |
| Type | Hydraulic/spring-assisted buffer, cushioned both ends |
| Cushioning | Adjustable progressive end-cushioning |
| Mounting | Foot mount, reinforced impact face |
