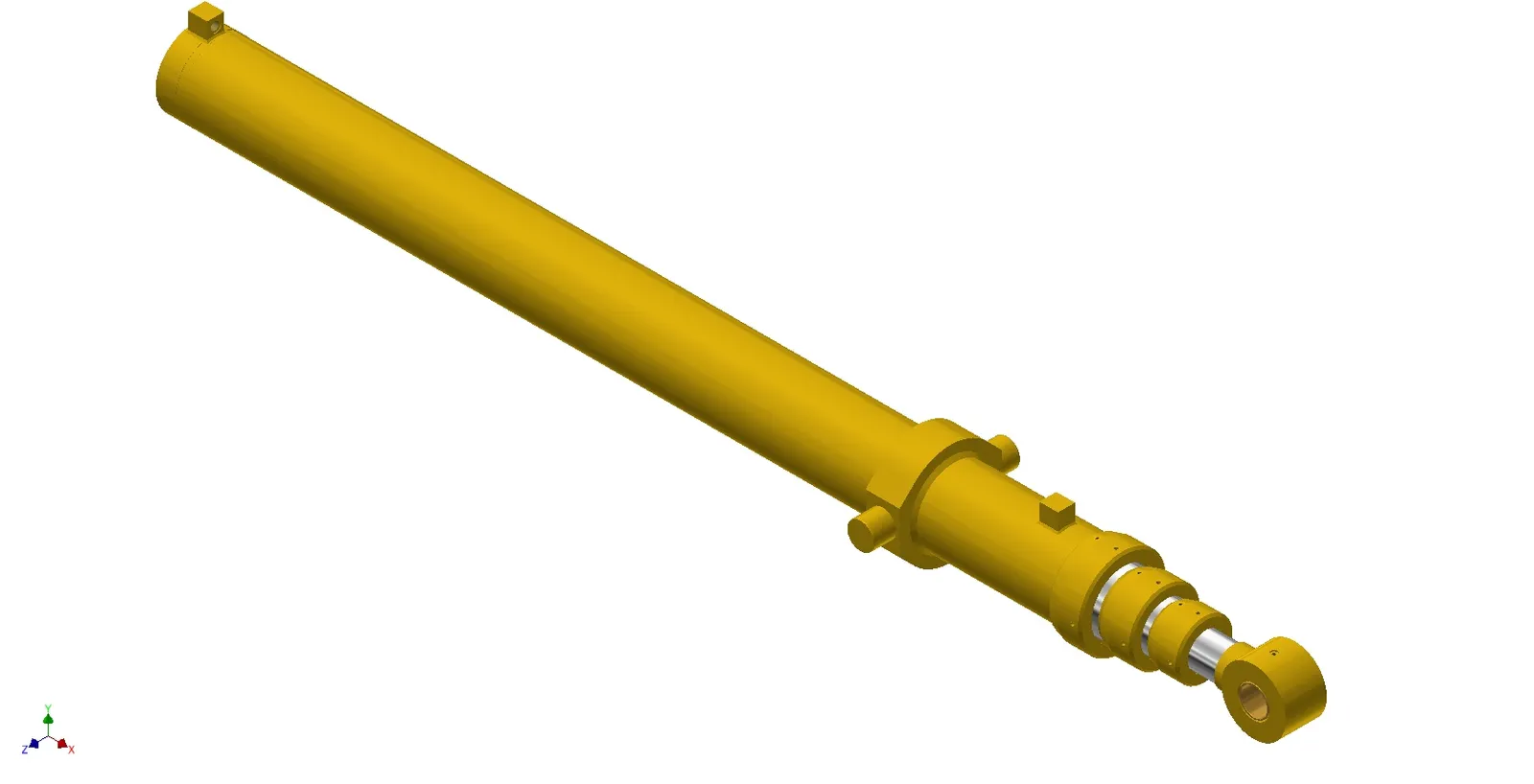

Wagon Tippler Cylinder
Application-engineered for demanding process-plant duty.
Wagon tippler cylinders provide the massive tipping, wheel-clamping, and top-holding forces required to overturn 100-tonne rail wagons during rapid bulk material unloading.
6 engineering parametersAlternate Views:
Application detail
Designed around plant conditions.
Constructed with high-strength alloy forgings and cushioned deceleration zones to manage extreme rotational inertia and dynamic load shifts during the dumping cycle.
Final bore, stroke, mounting, material and seal selection are confirmed against the approved drawing and operating duty.
Technical range
6 parametersWagon Tippler Cylinder specifications
| Parameter | Indicative specification |
|---|---|
| Bore Size | 200-550 mm |
| Stroke Length | 1,200-3,800 mm |
| Working Pressure | 210-350 bar |
| Duty | High-frequency heavy cyclic railcar turnover |
| Cushioning | Progressive hydraulic deceleration both ends |
| Mounting | Trunnion / heavy pin mounting |
