Single Girder EOT Cranes
Manufactured to IS 3177 / IS 3938 with fail-safe braking and VFD drive controls.
Cost-effective overhead traveling cranes for spans up to 25 meters. Highly optimized structure that minimizes deadweight load on workshop pillar supports.

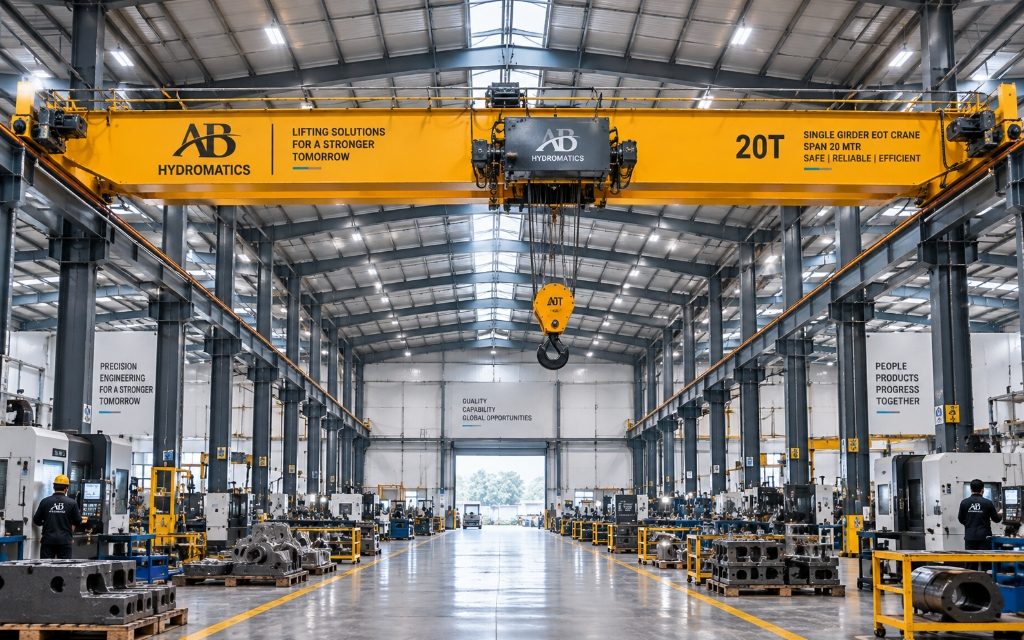

Tested at 125% OverloadCrane & Assembly Views:
Safety & Compliance
Built with triple-redundant safety mechanisms.
Equipped with electro-hydraulic thruster brakes, rotary gear limit switches, gravity limit switches, overload cut-off cells, and shock-absorbing polyurethane buffers.
100% factory assembled and load-deflection tested in accordance with IS 3177 before site installation and commissioning.
Technical specifications
5 parametersSingle Girder EOT Cranes Parameters
| Parameter | Specification |
|---|---|
| Span Coverage | Up to 25 meters span |
| Lifting Capacity | 1T - 20T |
| Operator Control | Pendant push button station / Radio remote control |
| Structure | Box girder or standard rolled steel joist |
| Ideal Settings | Engineering workshops, warehouses, light assembly bays |
