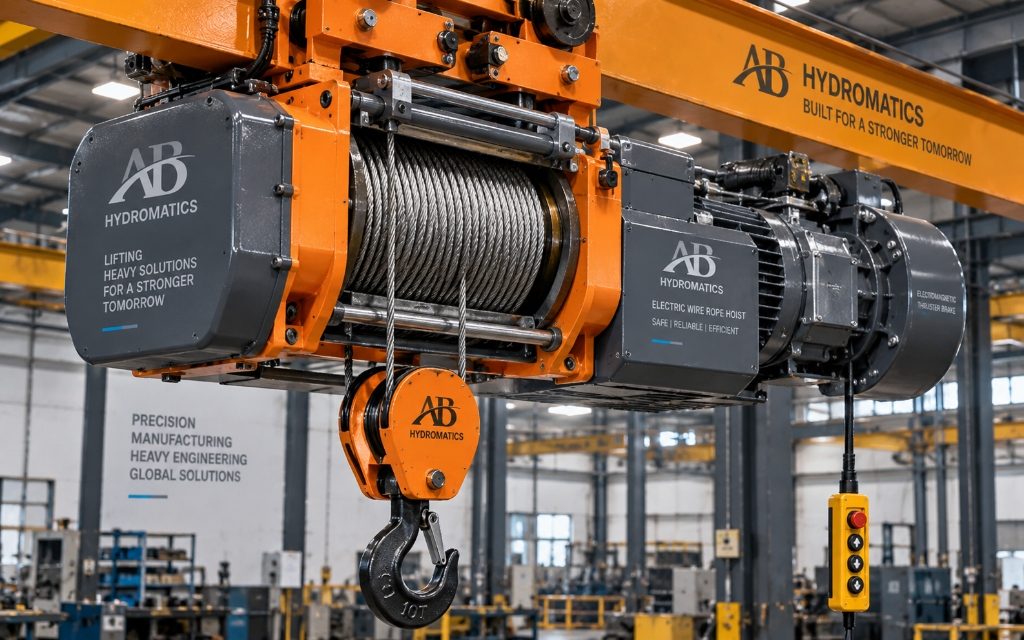

Wire Rope Hoists
Manufactured to IS 3177 / IS 3938 with fail-safe braking and VFD drive controls.
Heavy-duty industrial hoisting for capacities from 1T to 100T+. Designed for continuous duty in steel plants, workshops, and heavy fabrication facilities.

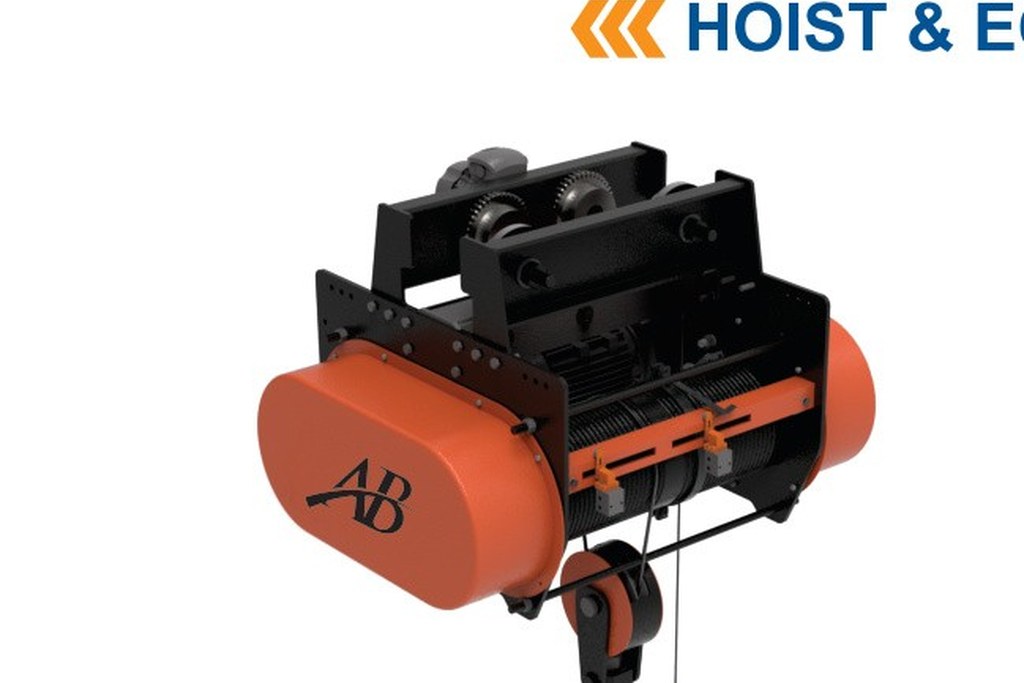

Tested at 125% OverloadCrane & Assembly Views:
Safety & Compliance
Built with triple-redundant safety mechanisms.
Equipped with electro-hydraulic thruster brakes, rotary gear limit switches, gravity limit switches, overload cut-off cells, and shock-absorbing polyurethane buffers.
100% factory assembled and load-deflection tested in accordance with IS 3177 before site installation and commissioning.
Technical specifications
5 parametersWire Rope Hoists Parameters
| Parameter | Specification |
|---|---|
| Lifting Capacity | 1T - 100T+ |
| Duty Classification | IS 3938 Class II, III, IV / FEM / CMAA |
| Hoisting Speed | Dual speed or Variable Frequency Drive (VFD) |
| Safety Features | Overload limit switch, rope guide, safety latch |
| Braking System | Fail-safe electromagnetic disc / shoe brakes |
