Grinding Path Cylinder
Application-engineered for demanding process-plant duty.

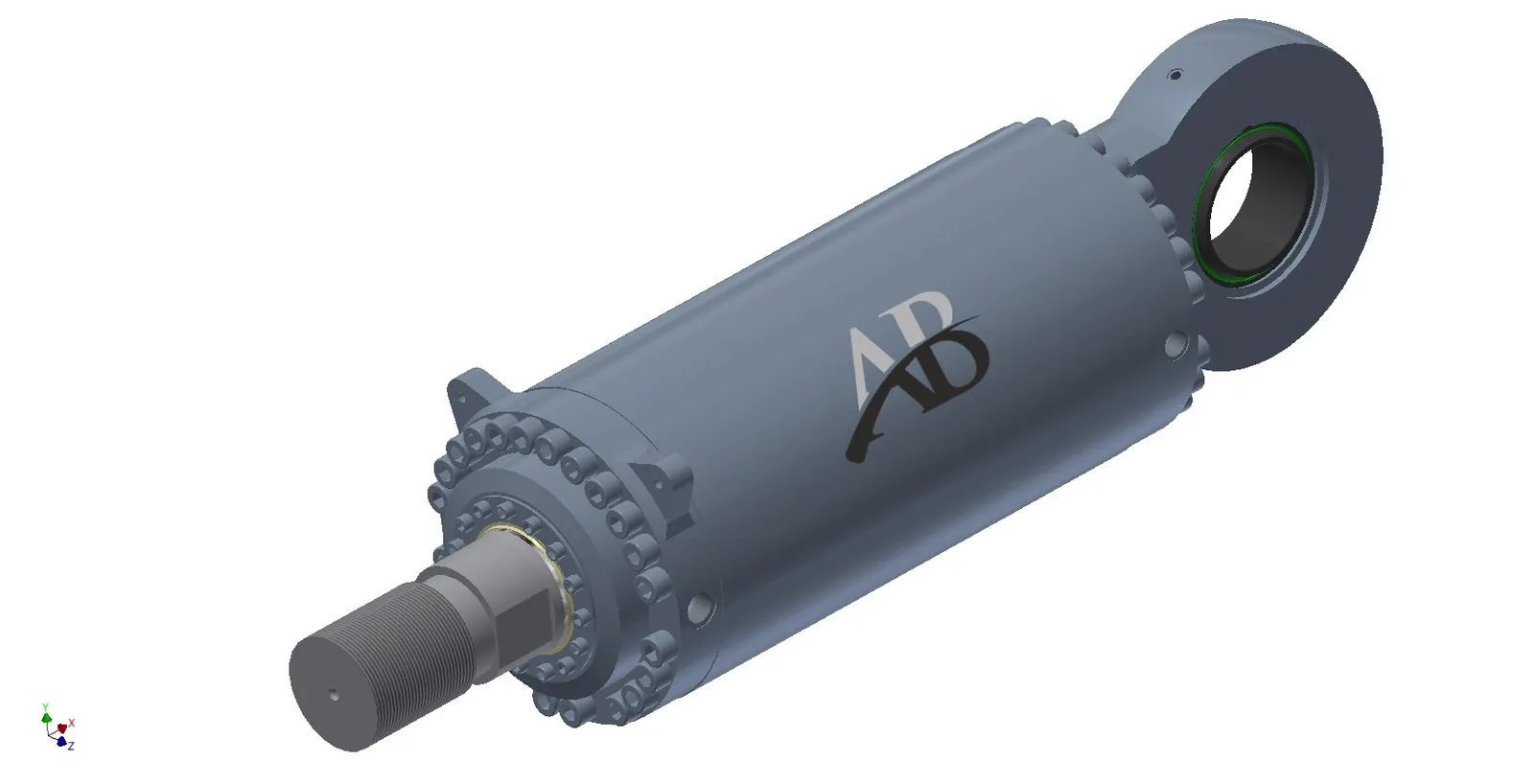

Grinding path cylinders adjust the position and clearance of grinding rollers relative to table segment liners in vertical roller mills, compensating for progressive liner wear.
6 engineering parametersAlternate Views:
Application detail
Designed around plant conditions.
Equipped with vibration-resistant seals and robust internal guide bearings to handle intense high-frequency table vibration during continuous raw meal grinding.
Final bore, stroke, mounting, material and seal selection are confirmed against the approved drawing and operating duty.
Technical range
6 parametersGrinding Path Cylinder specifications
| Parameter | Indicative specification |
|---|---|
| Bore Size | 100-350 mm |
| Stroke Length | Up to 800 mm |
| Working Pressure | 200-320 bar |
| Duty | High-cyclic, high-vibration environment |
| Seals | Vibration-resistant seal and guide-ring set |
| Mounting | Trunnion / flange |
