Plant cylinder subtype

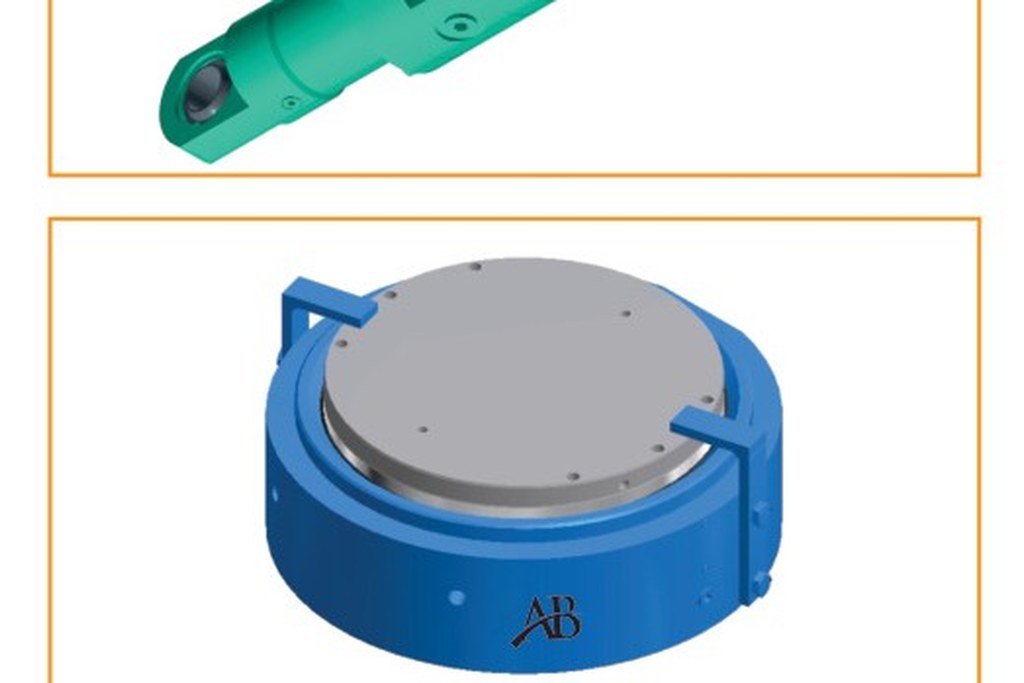

Roller Press Cylinder
Application-engineered for demanding process-plant duty.
Roller press cylinders generate immense hydraulic compressive forces for High-Pressure Grinding Rolls (HPGR) used in cement clinker, slag, and iron ore pelletizing plants.
7 engineering parametersAlternate Views:
Application detail
Designed around plant conditions.
Operates under severe dynamic pressure spikes with dedicated accumulator banks, heavy forged cylinder bodies, and ultra-low friction composite seals for maximum energy efficiency.
Final bore, stroke, mounting, material and seal selection are confirmed against the approved drawing and operating duty.
Technical range
7 parametersRoller Press Cylinder specifications
| Parameter | Indicative specification |
|---|---|
| Bore Size | 250-700 mm |
| Rod Diameter | 180-500 mm |
| Stroke Length | 150-600 mm |
| Working Pressure | 250-380 bar |
| Grinding Force | Up to 10,000 kN per roller |
| Seals | Multi-stage zero-leakage HPGR seal package |
| Mounting | Spherical roller bearing trunnion |
