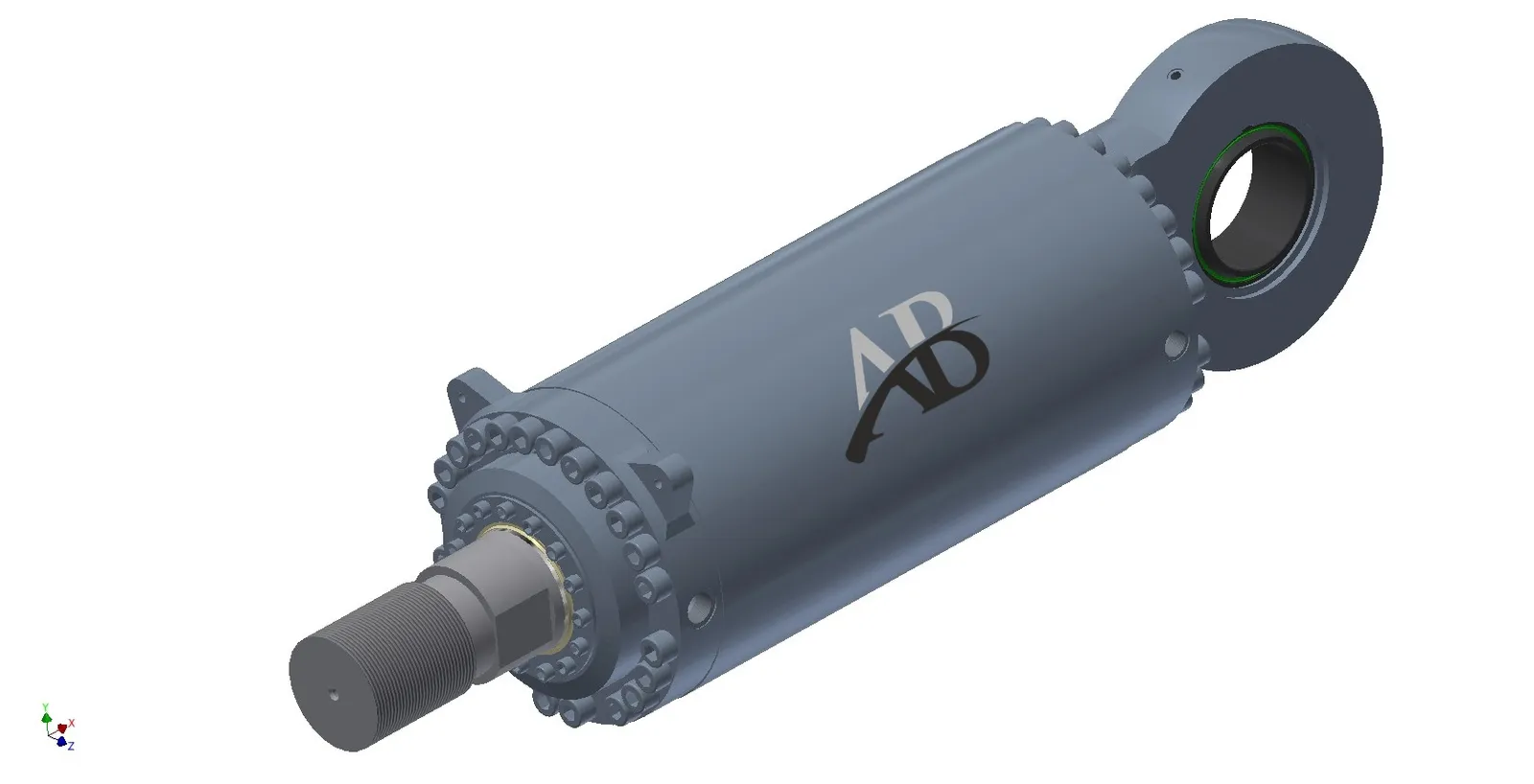

Raw Mill Cylinder
Application-engineered for demanding process-plant duty.
Raw mill cylinders provide roller tensioning, mill inlet gate actuation, and precision grinding-pressure control on vertical roller mills processing limestone, clay and raw-meal components.
7 engineering parametersAlternate Views:
Application detail
Designed around plant conditions.
Built with high-fatigue forged steel heads, honed seamless tubes, and high-temperature seals rated up to 120°C to withstand intensive 24/7 kiln-feed operations without pressure drift.
Final bore, stroke, mounting, material and seal selection are confirmed against the approved drawing and operating duty.
Technical range
7 parametersRaw Mill Cylinder specifications
| Parameter | Indicative specification |
|---|---|
| Bore Size | 150-630 mm |
| Rod Diameter | 100-400 mm |
| Stroke Length | Up to 1,500 mm |
| Working Pressure | 200-350 bar |
| Duty | Continuous, high-cyclic fatigue duty |
| Seals | High-temperature seal set, up to 100-120°C |
| Mounting | Trunnion mount |
