Port & Crane Cylinders
High-capacity cylinders designed for maritime, shipyard, and port material handling operations.
High-capacity hydraulic cylinders engineered for severe marine and coastal duty. Finished with marine-duty anti-corrosion protective coatings, double hard-chrome plating or laser cladding, and high safety factor designs for container handling, luffing, and heavy shipyard hoisting.
Maritime & Port Duty · Anti-CorrosionEngineered for harsh coastal & maritime operations.
Port and shipyard cylinders operate under severe atmospheric and marine exposure with constant saltwater spray, high wave shock loads, and non-stop container throughput cycles. AB Hydromatics incorporates double hard-chrome plating or laser-clad rod protection, integrated counter-balance and velocity-fuse safety manifolds, and multi-stage marine epoxy paint systems.
Specify the crane type, operating load, luffing/hoisting geometry, coastal environmental exposure and classification society standards for technical proposal and engineering sign-off.
Port & Crane Technical Specifications
| Parameter | Specification & Engineering Scope |
|---|---|

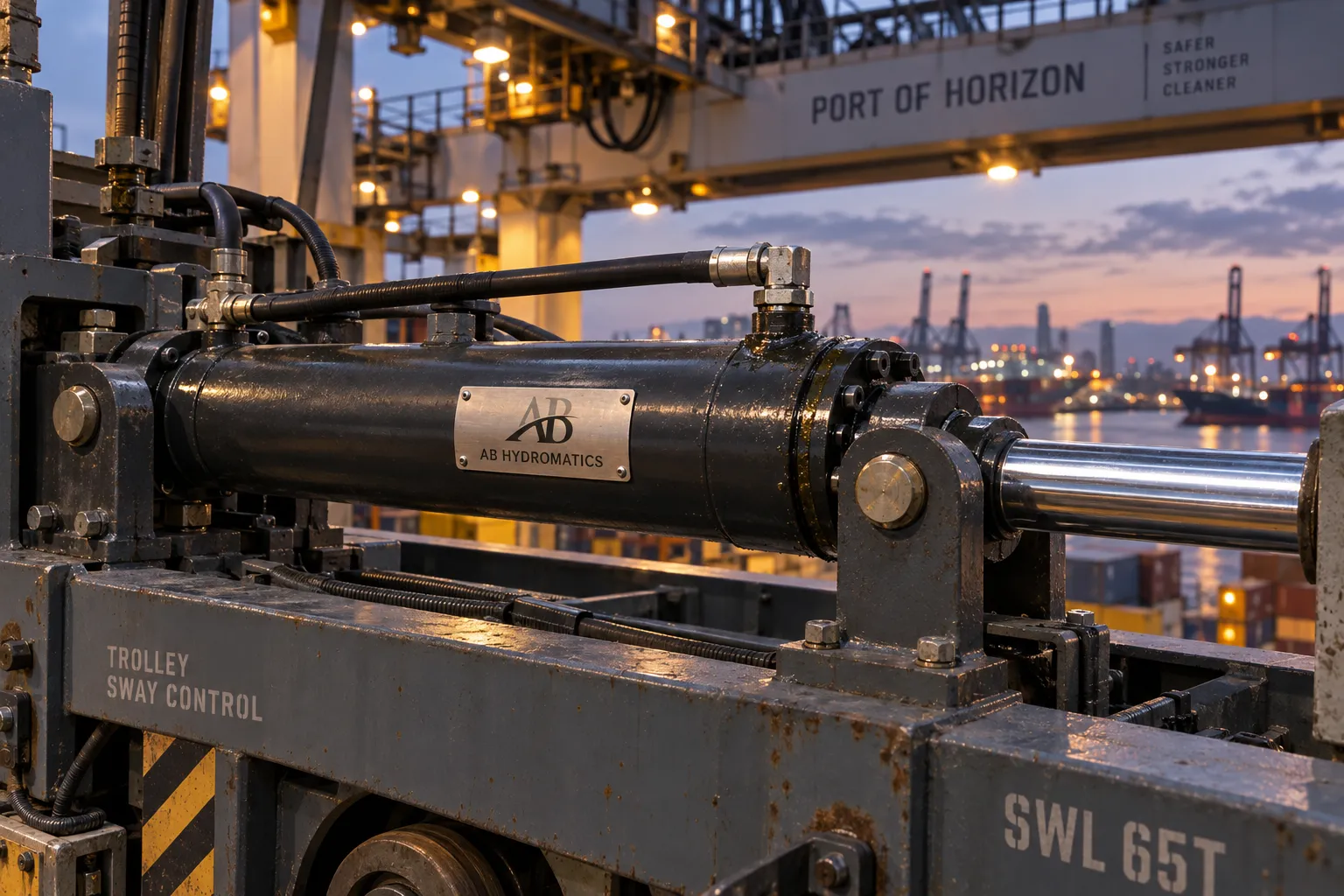

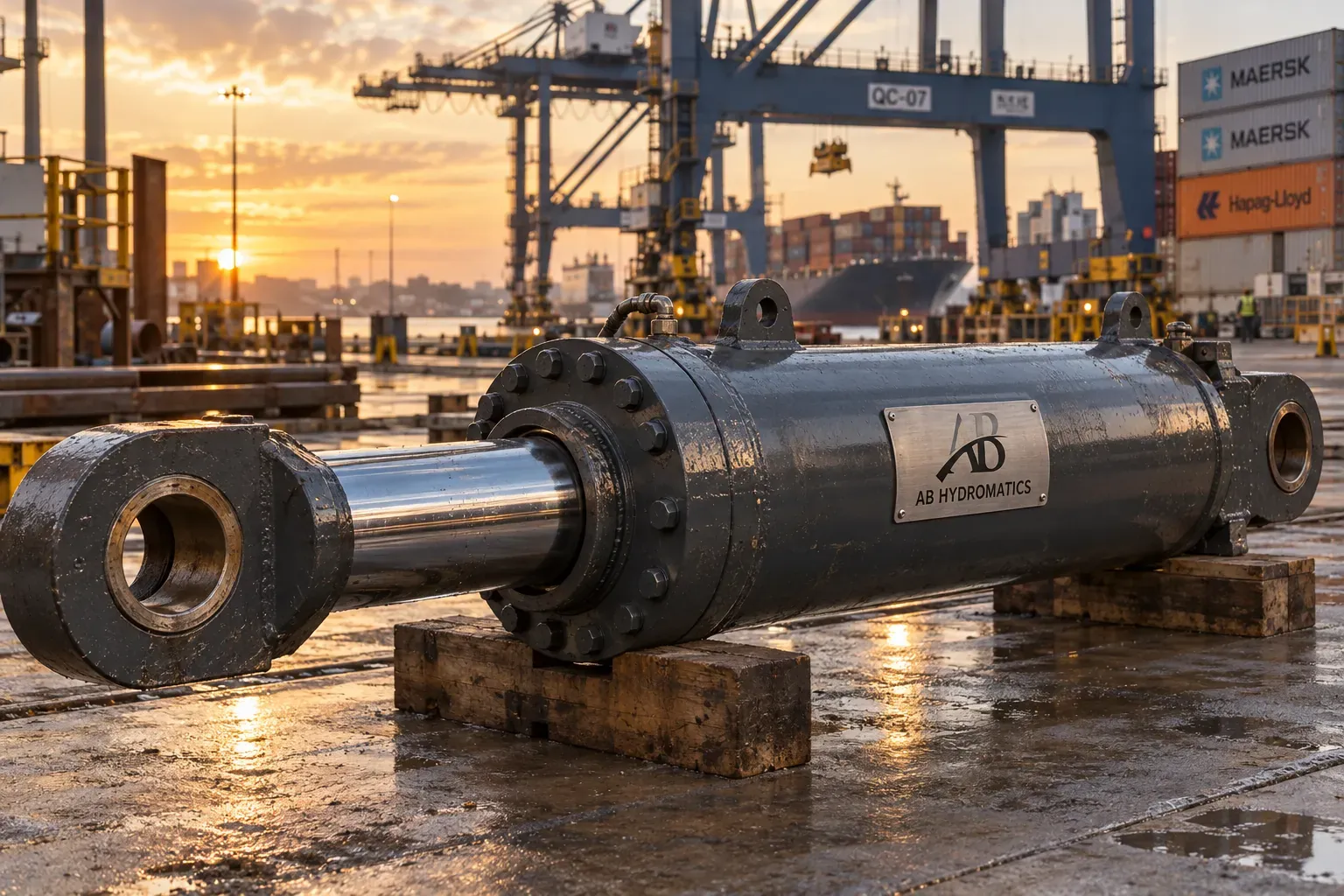

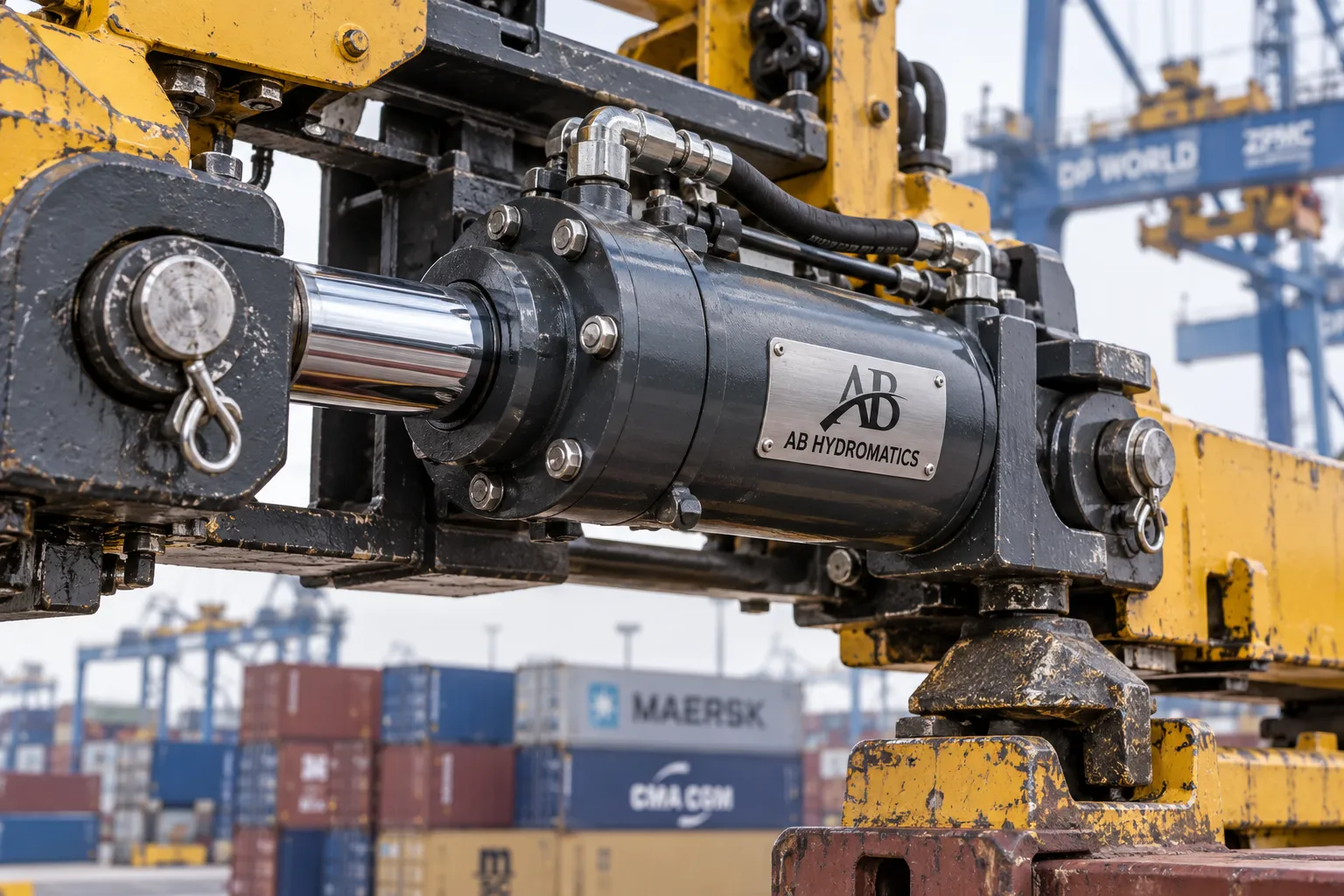

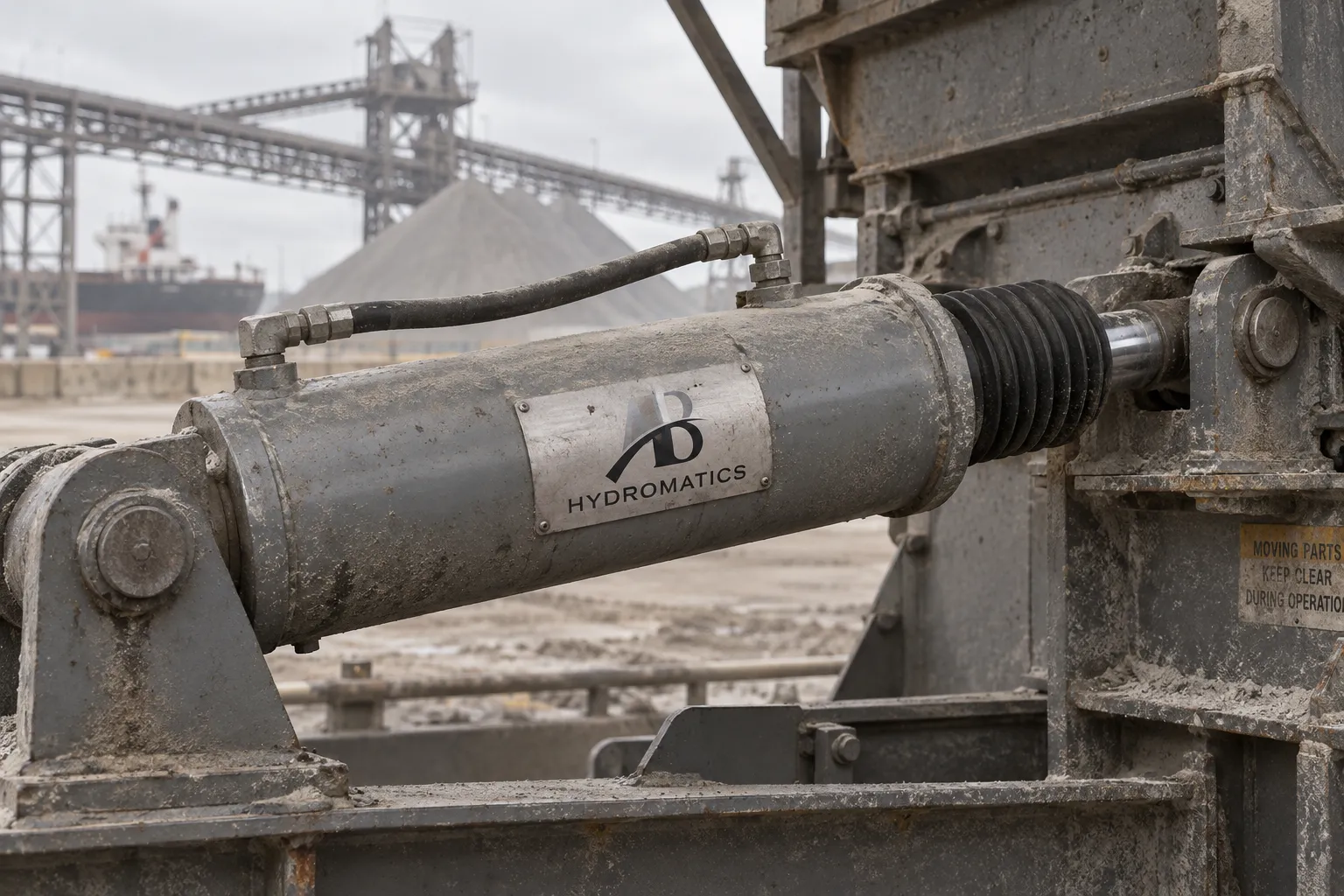

| Applications | Titan Crane Luffing, Hopper Gate, STS Snag, Skew Shifter |
| Operating Environment | Corrosive coastal, offshore & saltwater marine settings |
| Rod Protection | Double hard-chrome plating or corrosion-resistant laser cladding |
| Design Factor | High safety coefficients engineered for hoisting & suspended loads |
| Bore Capacity | Bores from 100 mm up to 800 mm |
| Stroke Length | Up to 10,000 mm continuous stroke capability |
| Operating Pressure | Up to 450 bar continuous operating pressure |
| Mounting Styles | Heavy spherical plain bearings, Trunnion & Clevis eyes |
