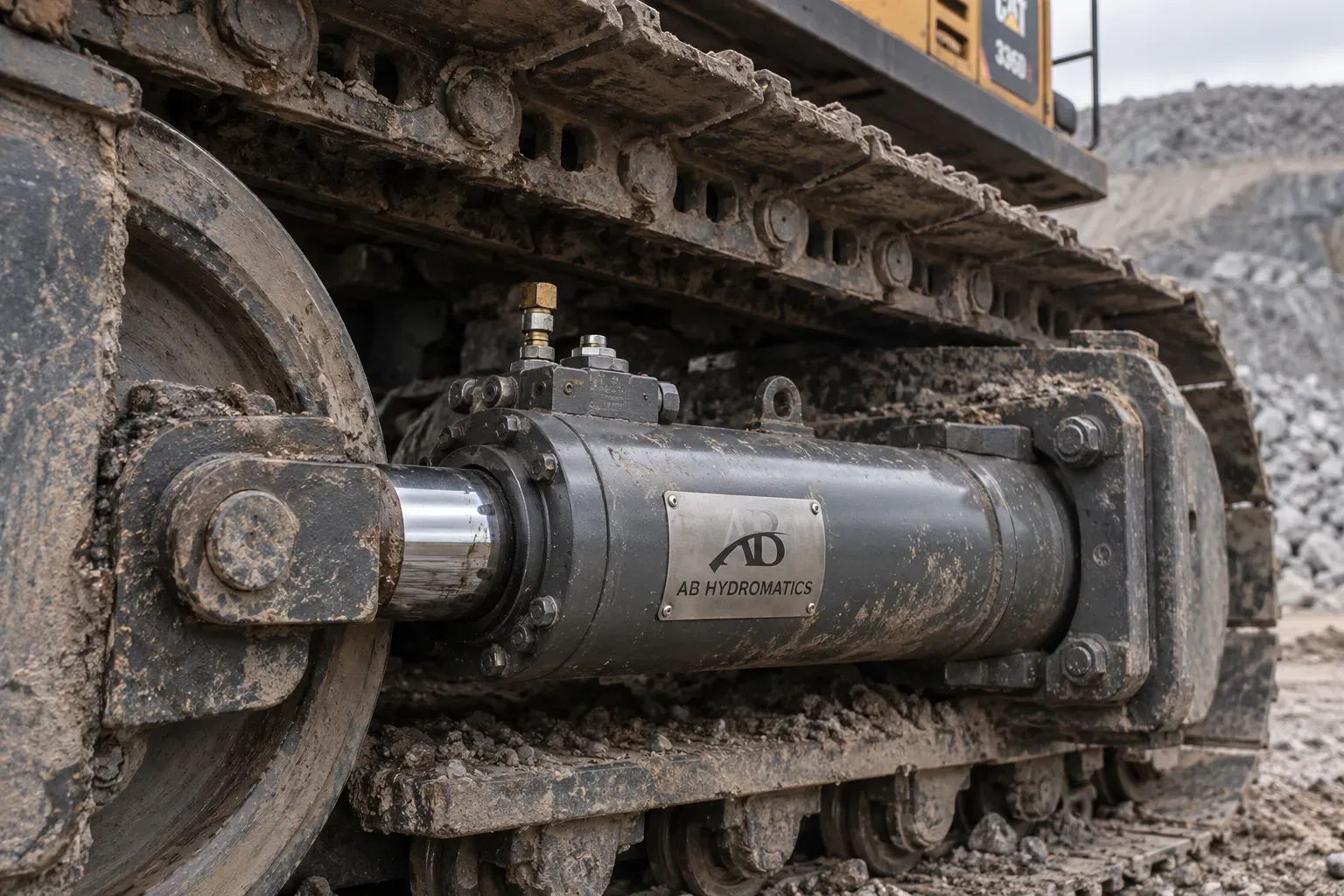

- Working Pressure
- Up to 500 kg/cm² (Grease Pressure)
- Application
- Excavators, Dozers, Shovels, Crawler Cranes
- Barrel Material
- High-tensile forged alloy steel / Thick-wall tube
Custom Engineered & Tested In-House

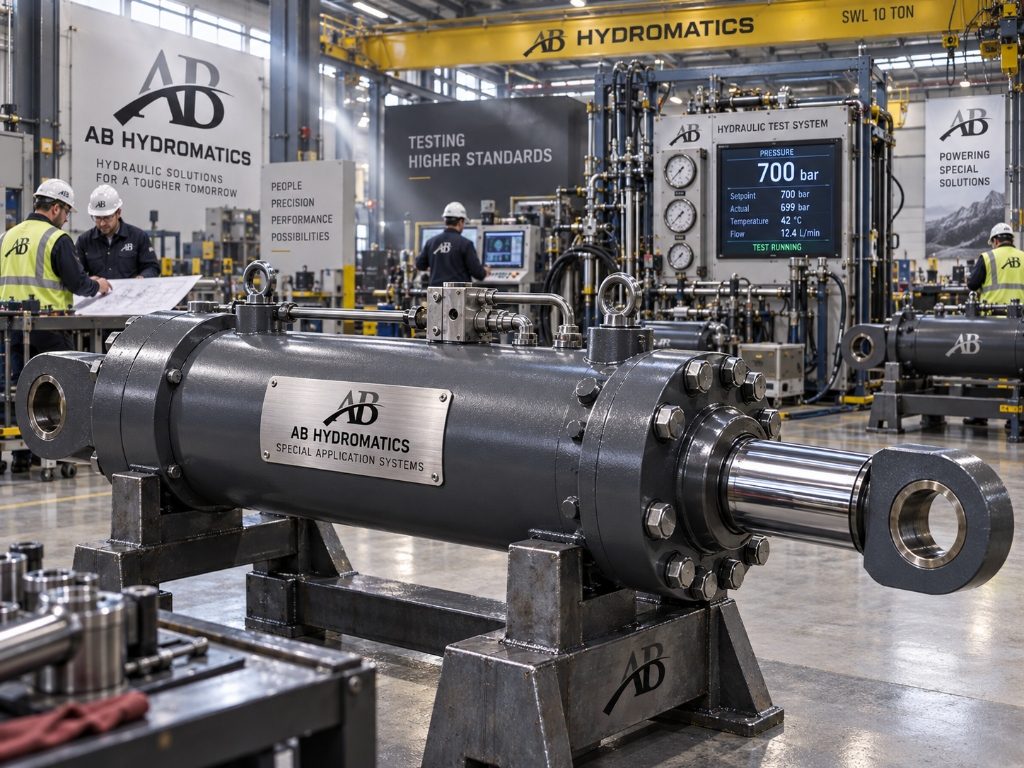

Special Application Cylinders
Extreme-duty units engineered for specialized high-pressure, suspension, and tensioning requirements.
Custom engineered, precision-machined, assembled and quality-tested completely in-house. High-pressure specialized units including grease track tensioning cylinders, nitrogen shock accumulators, vehicle suspensions, and high-stroke plunger cylinders.
Extreme Duty · Up to 700 BarSpecialized Operating Capabilities
- Max Pressure
- Up to 700 bar (10,000 PSI)

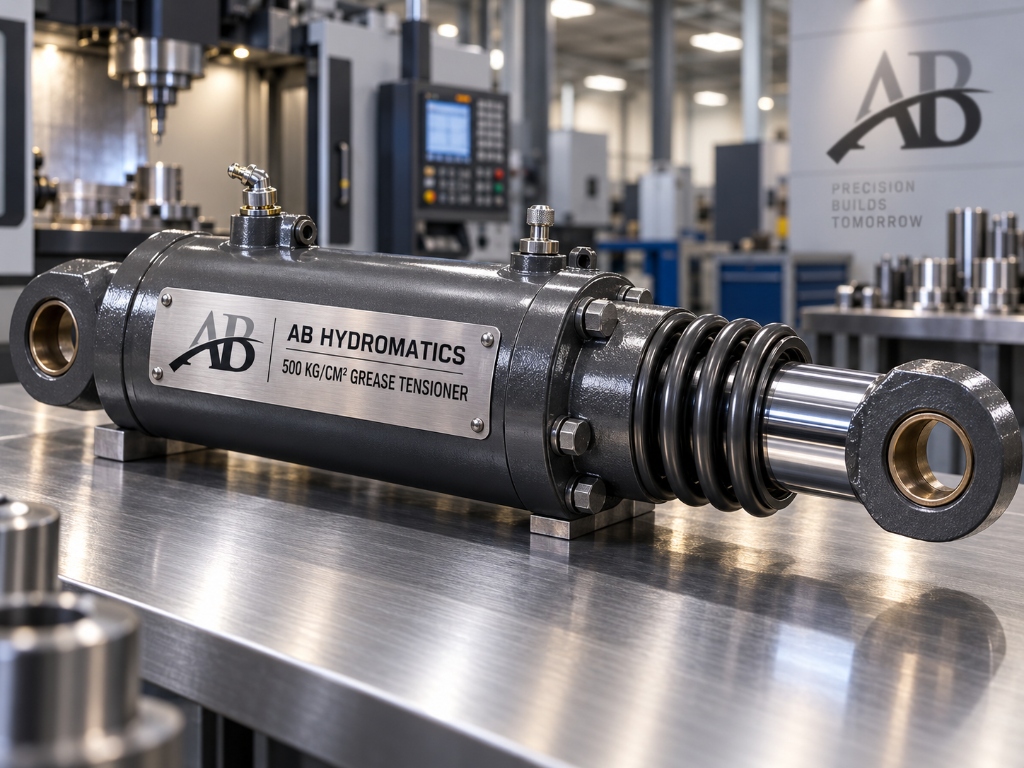

- Grease Cylinders
- Up to 500 kg/cm²
- Suspension Testing
- Custom suspension calibration rigs

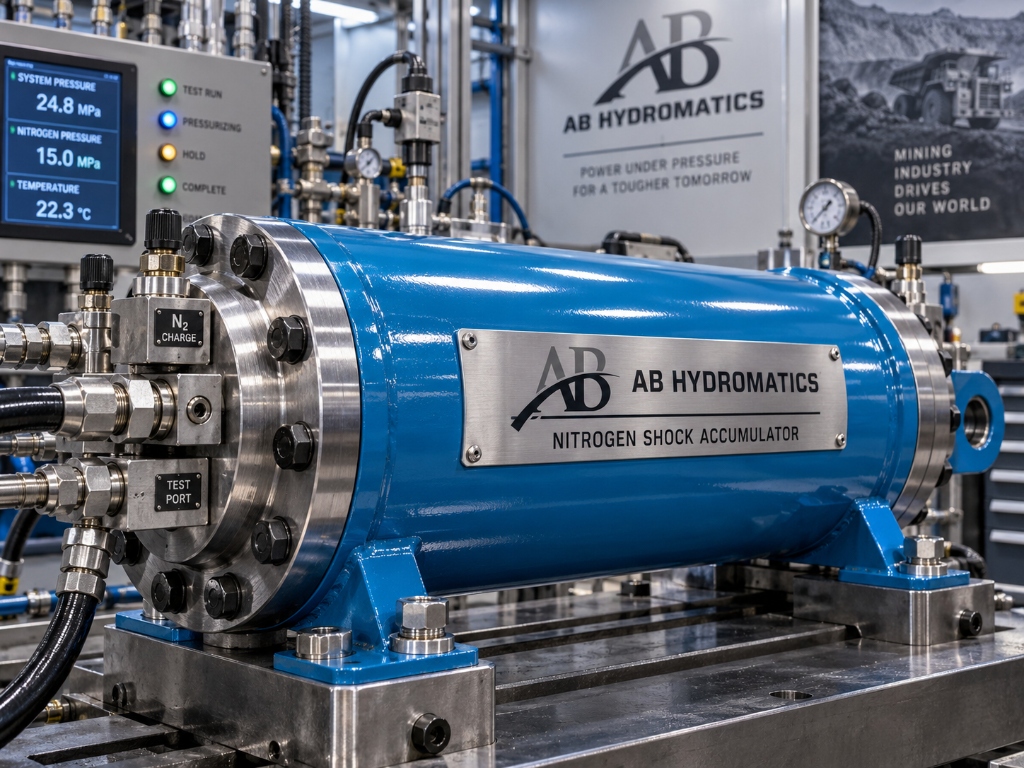

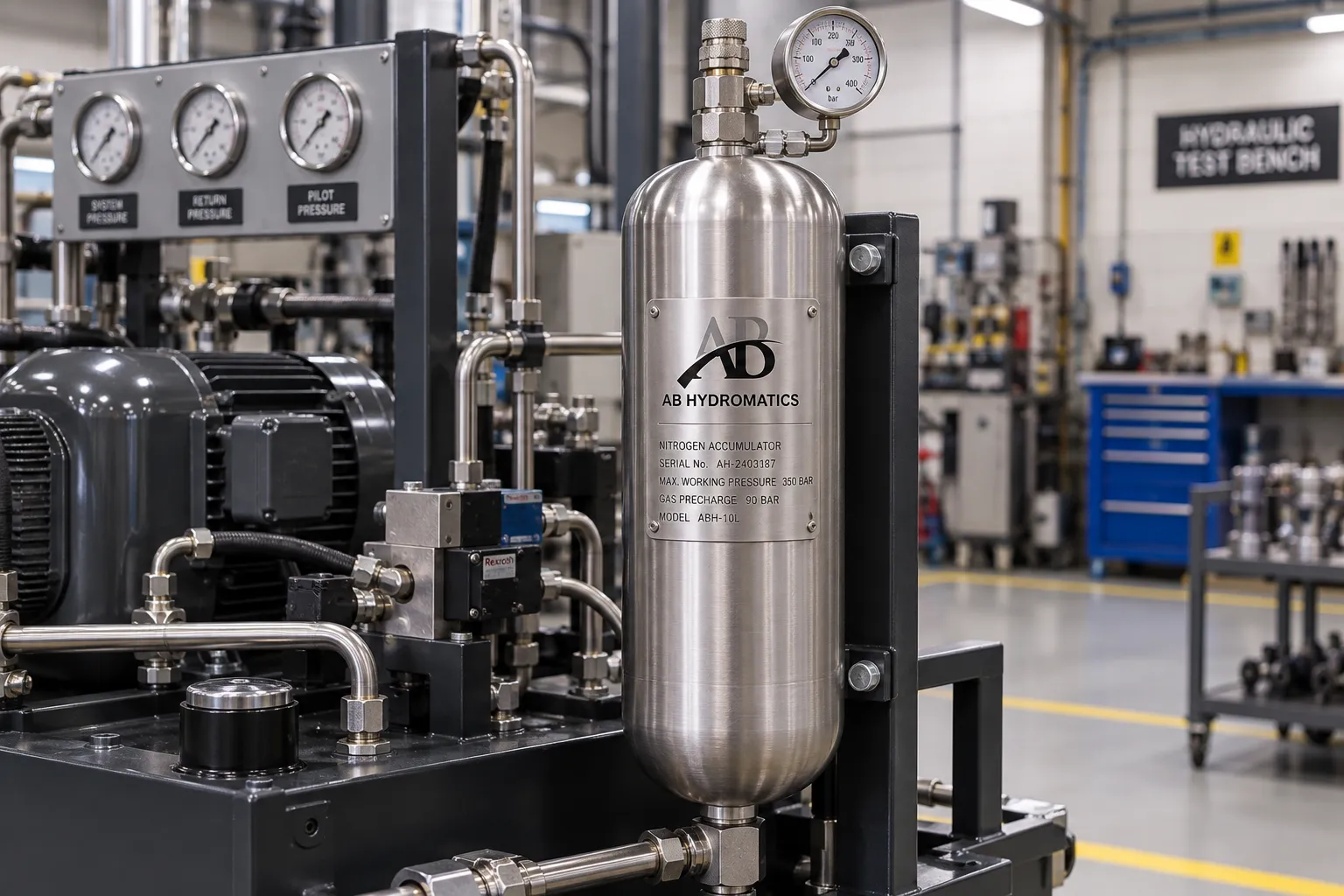

- Nitrogen Shock
- Gas-over-oil high frequency damping
Subtype range
Select the specialized cylinder configuration.
Review technical specifications, operating principles, and engineering scope for each custom high-pressure application.
- Gas Pre-Charge
- Pure Nitrogen (N2) up to 250 bar
- Hydraulic Pressure
- Working pressures up to 450 bar
- Piston Technology
- Floating low-friction PTFE/Bronze capped piston

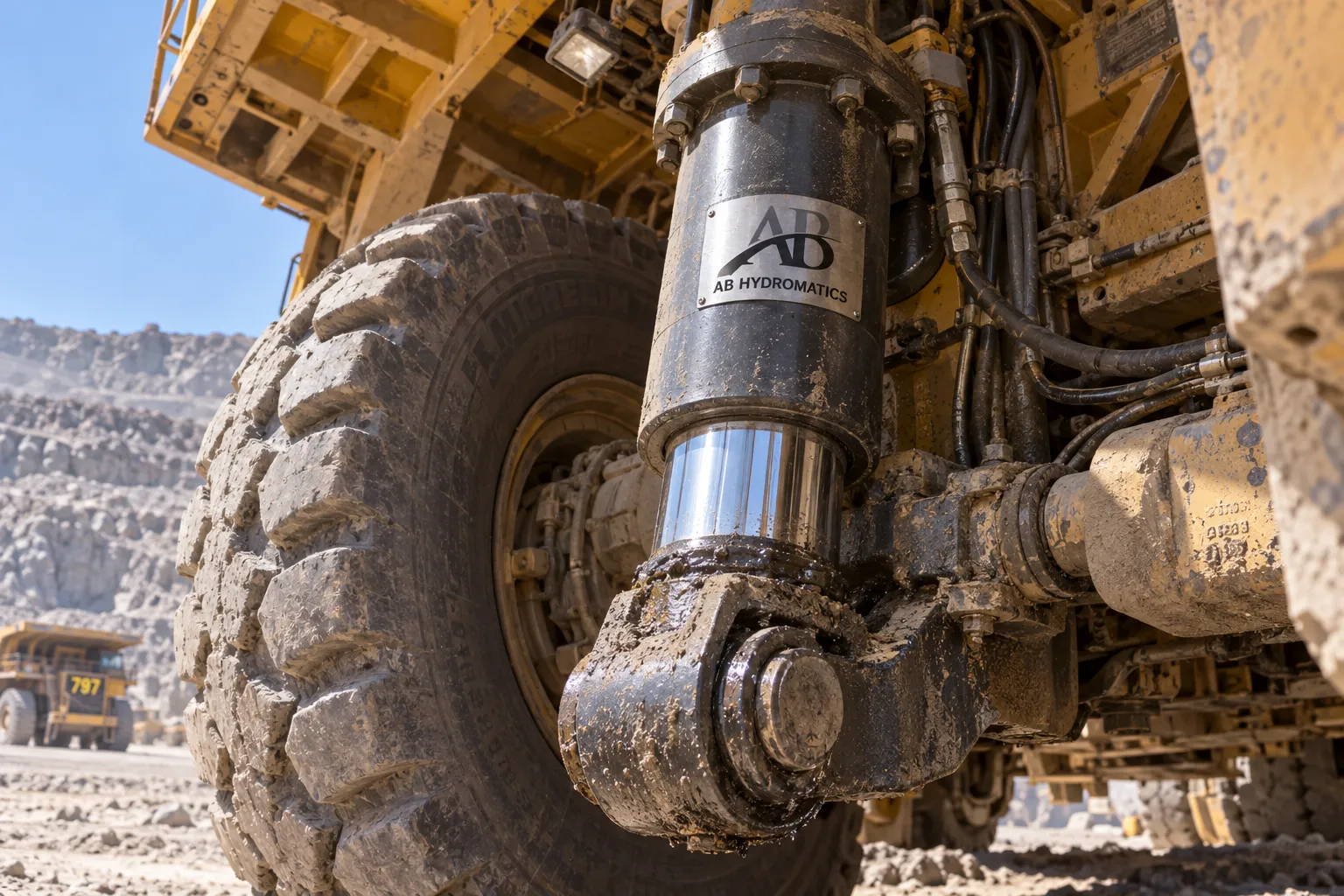

- Vehicle Capacity
- 100-ton to 240-ton Rigid Mining Dump Trucks

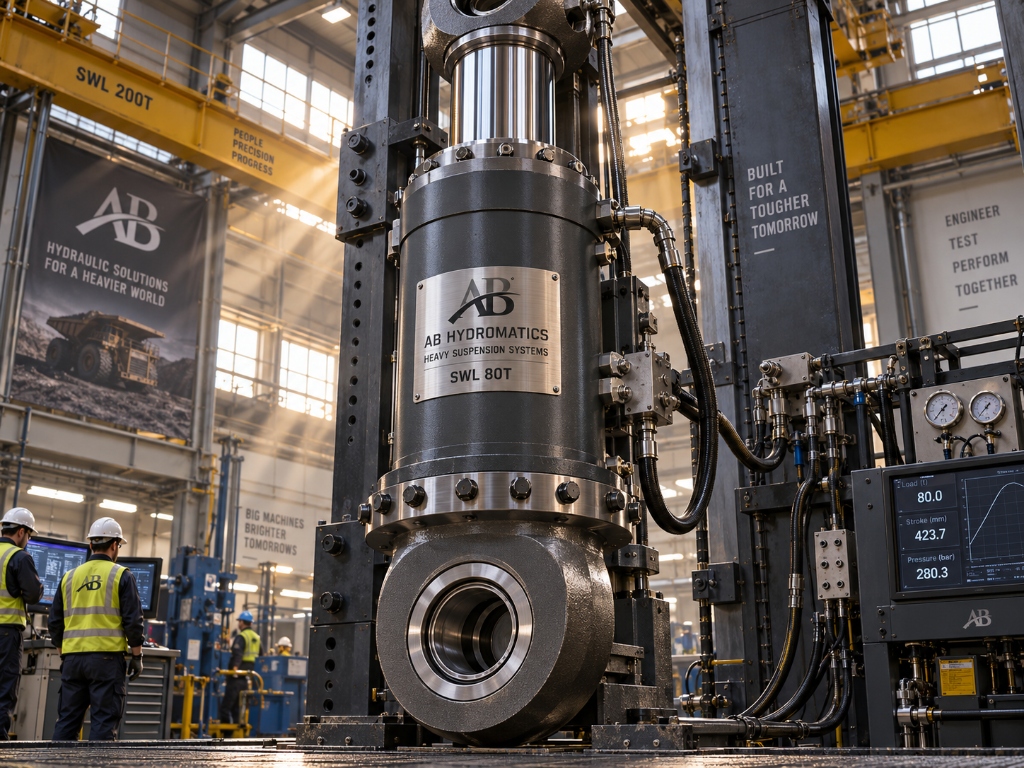

- Suspension Type
- Hydro-Pneumatic (Gas-over-Oil suspension strut)
- Rod Treatment
- Induction hardened & double hard chrome (50+ µm)

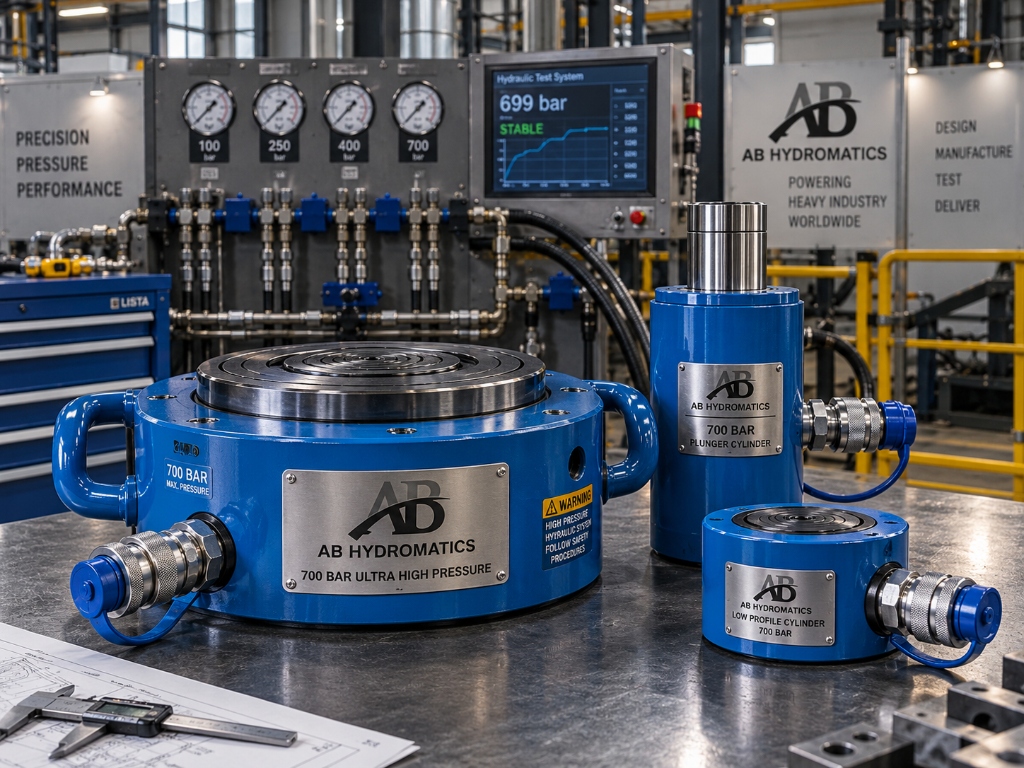

- Rated Pressure
- 700 bar / 70 MPa / 10,000 PSI continuous

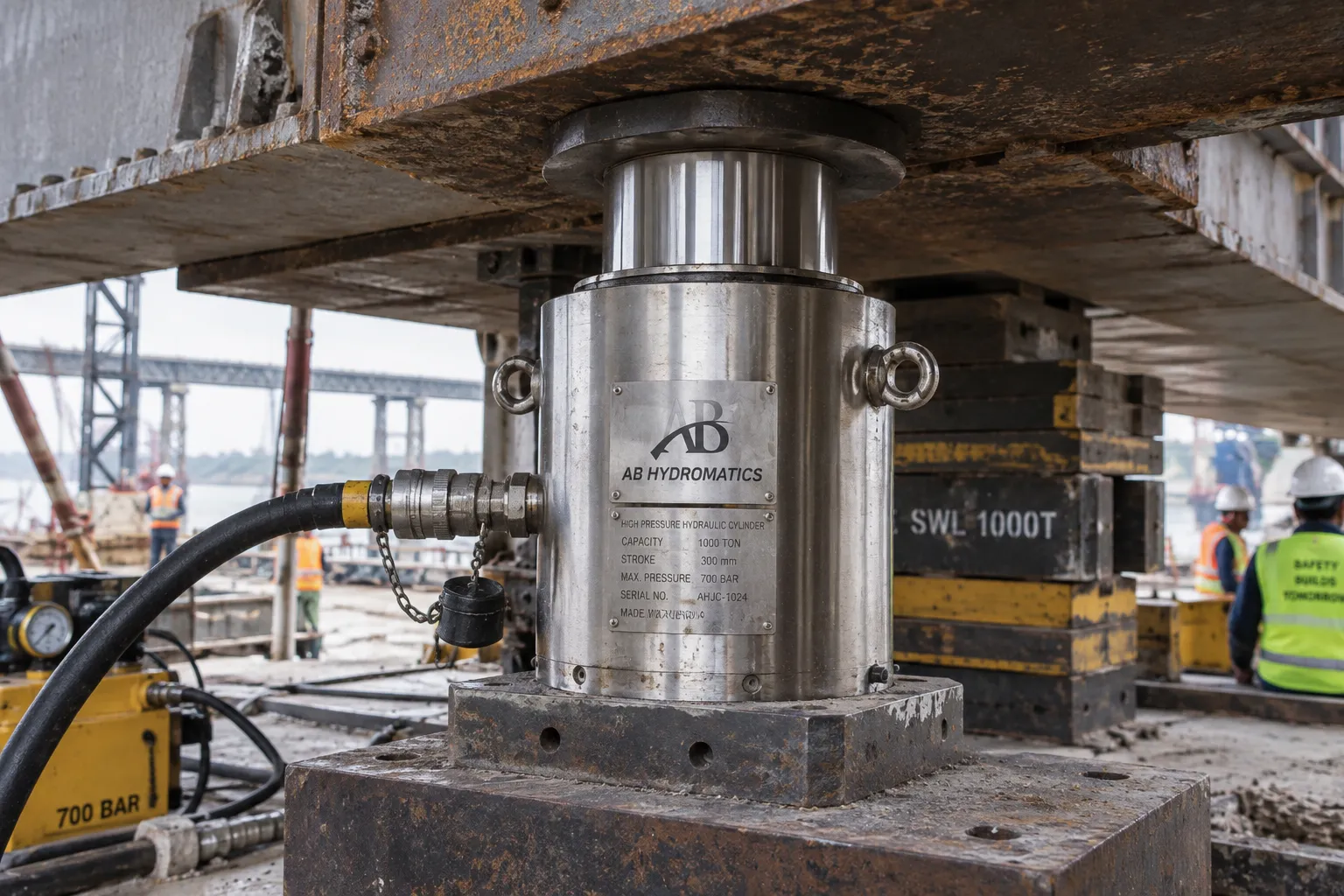

- Tonnage Rating
- 50 Tons to 1,200+ Tons capacity
- Configuration
- Single-Acting / Double-Acting / Low-Profile Pancake / Hollow Plunger
