Gas-Over-Oil · Shock & Pulsation Damping

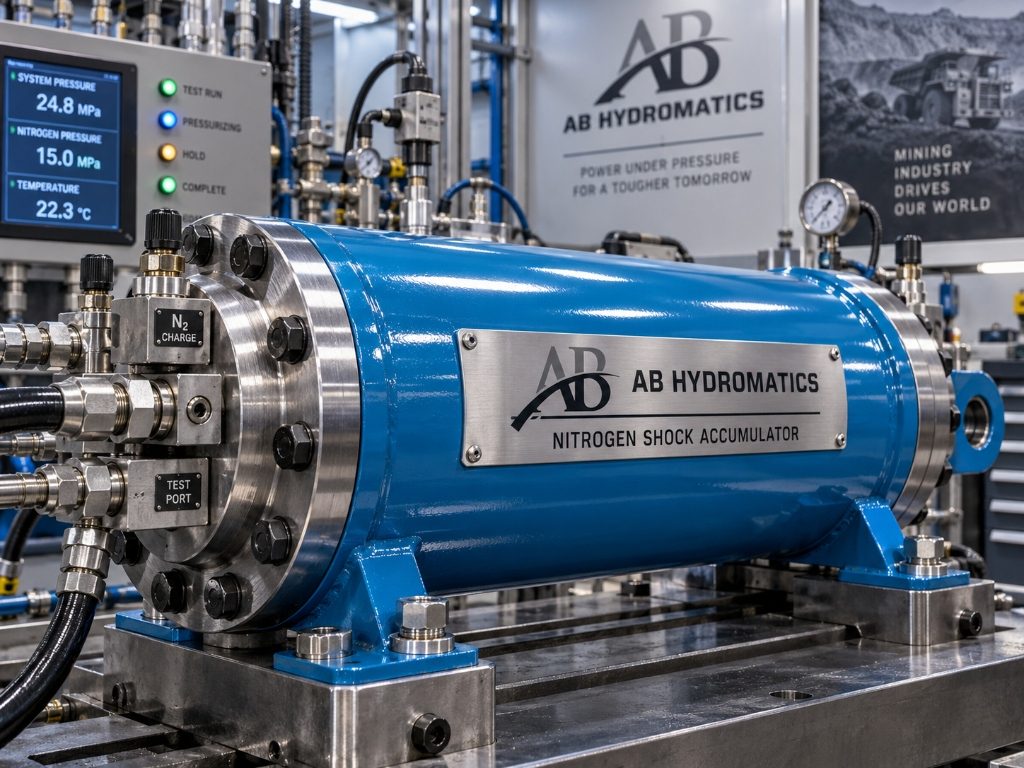

Nitrogen Shock Accumulator Cylinders
High-frequency shock mitigation and energy storage cylinders for mining mobile crushers, drill rigs, and heavy industrial circuits.
Nitrogen shock accumulator cylinders isolate severe vibrations, hydraulic ripple, and sudden mechanical shocks by utilizing a compressible pre-charged nitrogen gas chamber separated from the oil circuit by a heavy-duty floating piston or bladder.
Gas-Over-Oil · Shock & Pulsation DampingEngineering detail
Custom engineered & quality-tested in-house.
Designed with ultra-smooth micro-honed interior surfaces to maximize seal life under rapid cycling. Equipped with certified high-pressure gas filling valves and burst-disc safety assemblies.
Engineering Highlights
- Instantaneous response time to absorb peak hydraulic pressure spikes
- Low-friction composite piston rings prevent stick-slip during micro-oscillations
- Built-in corrosion-resistant gas valve block for fast pressure verification and re-charging
- Dramatically extends the operating lifespan of downstream pumps, valves, and hoses
Need custom dimensions, mounting, or special sealing configurations? Get in touch with our design engineers for a custom proposal.
Technical specifications
7 parametersNitrogen Shock Accumulator Cylinders Specs
| Parameter | Specification |
|---|---|
| Gas Pre-Charge | Pure Nitrogen (N2) up to 250 bar |
| Hydraulic Pressure | Working pressures up to 450 bar |
| Piston Technology | Floating low-friction PTFE/Bronze capped piston |
| Volume Capacity | 5 Litres to 100+ Litres custom capacity |
| Body Construction | Seamless forged steel alloy tube, micro-honed |
| Safety Features | Burst disc & integrated thermal gas relief |
| Standard Compliance | ASME / ISO 9001 pressure vessel testing |
