Standard Power Packs
Proven configurations with fast delivery for common industrial lifting, clamping, and pressing applications.

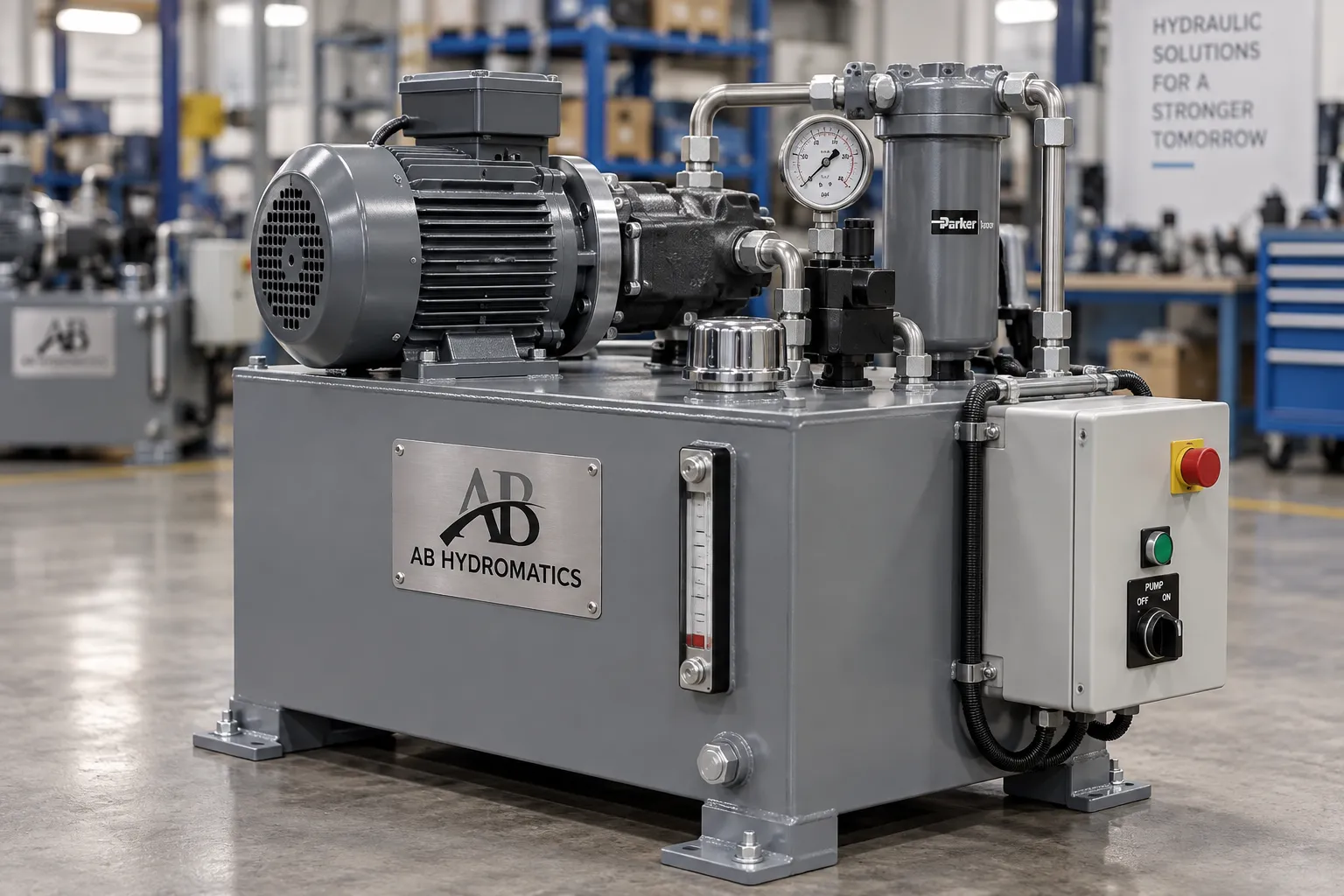

Pre-engineered compact and skid-mounted hydraulic power units featuring high-efficiency electric motors, reliable gear/vane pumps, integrated relief valves, return line filtration, and sight level gauges. Built with standardized reservoir volumes from 10L to 250L and operating pressures up to 250 bar for maximum plant uptime.
10L - 250L · Up to 250 barPre-engineered for immediate deployment and zero downtime.
Standard Power Packs by AB Hydromatics deliver dependable, continuous hydraulic flow and pressure for industrial machinery, factory jigs, workshop presses, scissor lifts, and tooling fixtures. Each unit is assembled with high-tolerance components, internal anti-rust oil tank coatings, and modular valve blocks to minimize external pipe joints and eliminate leak points.
Pre-tested under 100% full-load hydrostatic conditions before dispatch. Plug-and-play wiring and standard port connections allow fast commissioning on site.
Standard Engineering Parameters
| Parameter | Standard Specification |
|---|---|
| Reservoir Capacity | 10 Liters to 250 Liters (Heavy-duty steel tank with internal anti-rust epoxy lining) |
| Max Operating Pressure | Up to 250 bar (Continuous) / 300 bar (Peak intermittent) |
| Pump Options | Precision External Gear Pump or Low-Noise Balanced Vane Pump |
| Electric Motor | 0.5 HP to 30 HP (0.37 kW to 22 kW) · 3-Phase 415V / 50Hz (IE3 / IE4 Energy Efficient) |
| Flow Rate Range | 3 LPM to 80 LPM (Configurable to process stroke speed) |
| Filtration System | 10-micron return line filter with visual clogging indicator + 125-micron suction strainer |
| Valve Manifold | Standard CETOP 03 / CETOP 05 modular manifold block with directional solenoid or manual lever valves |
| Factory Testing | 100% full-load hydrostatic testing, relief valve calibration, and flow certification |
Engineered features built into every standard unit
Glycerin-Filled Dial Gauges
Dual-scale pressure gauges with dampening for vibration resistance, calibrated for instant visual system monitoring.
Multi-Stage Filtration
Suction strainer and return-line 10-micron filtration safeguard pumps and proportional valves against particle contamination.

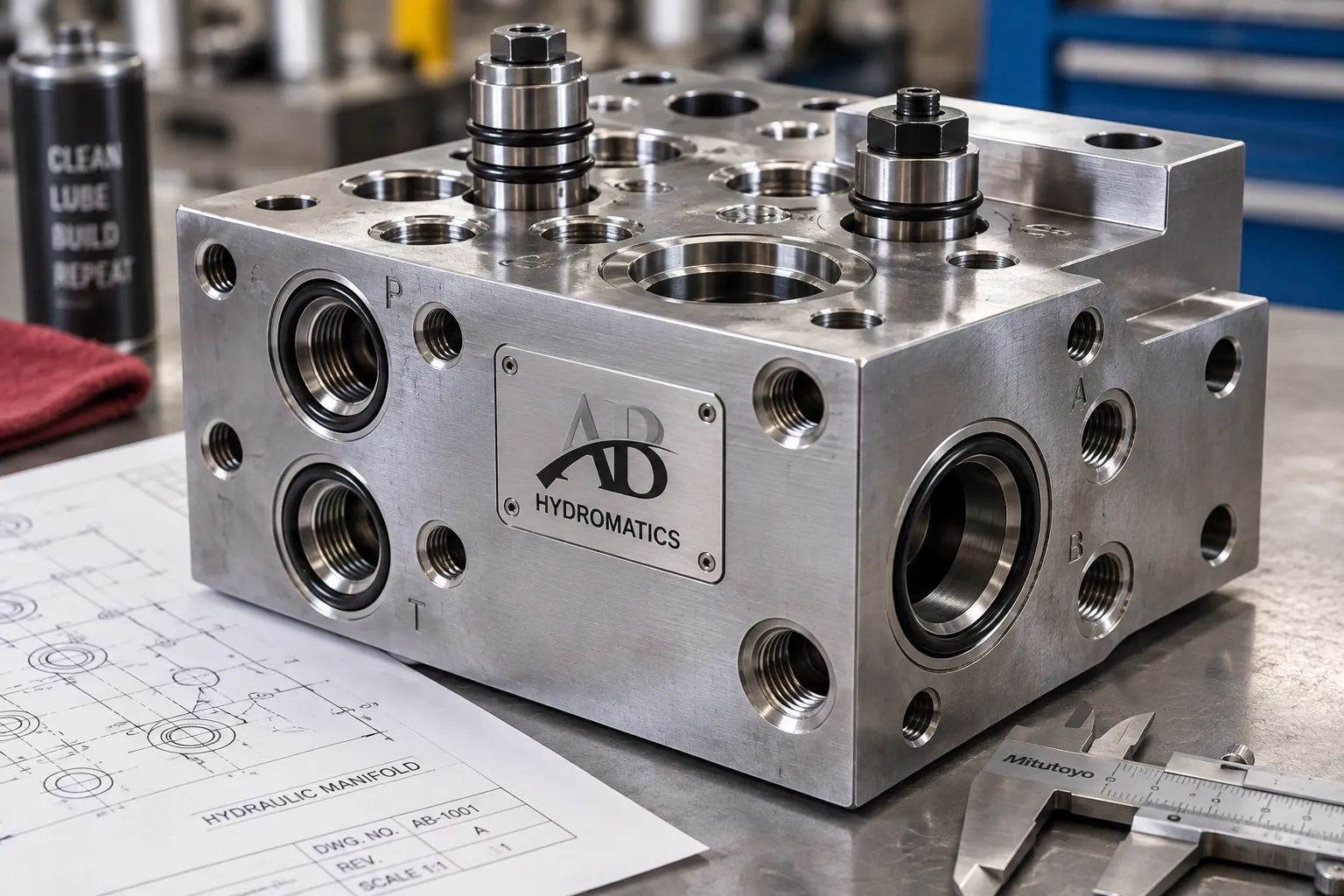

Integrated Manifold Block
Precision-machined steel/aluminum manifold eliminates external tube joints, reducing leak risk by over 60%.
High-Efficiency IE3 Motors
Standard high-efficiency electric motors minimize thermal generation and lower continuous operating power consumption.
