Testing & Vertical Assembly Bench
Extending equipment lifespan with precision honing, re-chroming, and certified hydrostatic testing.

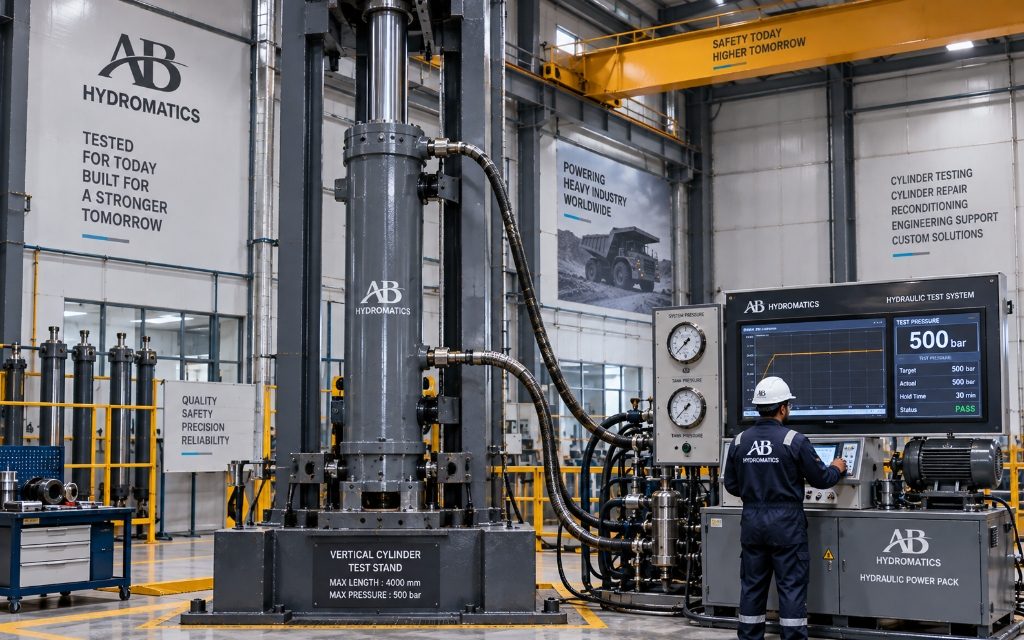

Rigorous quality check for all repaired and new cylinders. Features a dedicated vertical assembly and test bench to ensure leak-free performance under simulated load conditions up to 500 bar.
Tested to 500 BarService Bay Views:
Inspection & Quality
100% Hydrostatic and bypass pressure validation.
Every reconditioned cylinder is mounted on our dedicated vertical test bench, cycled under simulated full-load pressure up to 500 bar, and checked for zero internal passing and zero rod gland leakage.
Supplied with official test certificate, pressure graph, and warranty on replaced seals and remachined surfaces.
Technical specifications
5 parametersTesting & Vertical Assembly Bench Parameters
| Parameter | Specification |
|---|---|
| Vertical Assembly Bench | Up to 4,000 mm cylinder length |
| Max Weight Capacity | Up to 3 tonnes |
| Pressure Testing Limit | Up to 500 kg/cm² (500 bar hydrostatic) |
| Certification | Full test report & chart record provided on dispatch |
| Inspection | Internal bypass leakage & friction drag test |
