Gantry / Goliath Cranes
Manufactured to IS 3177 / IS 3938 with fail-safe braking and VFD drive controls.
Free-standing overhead cranes with support legs moving on ground rails. Eliminates the need for concrete building structure or roof runway supports.

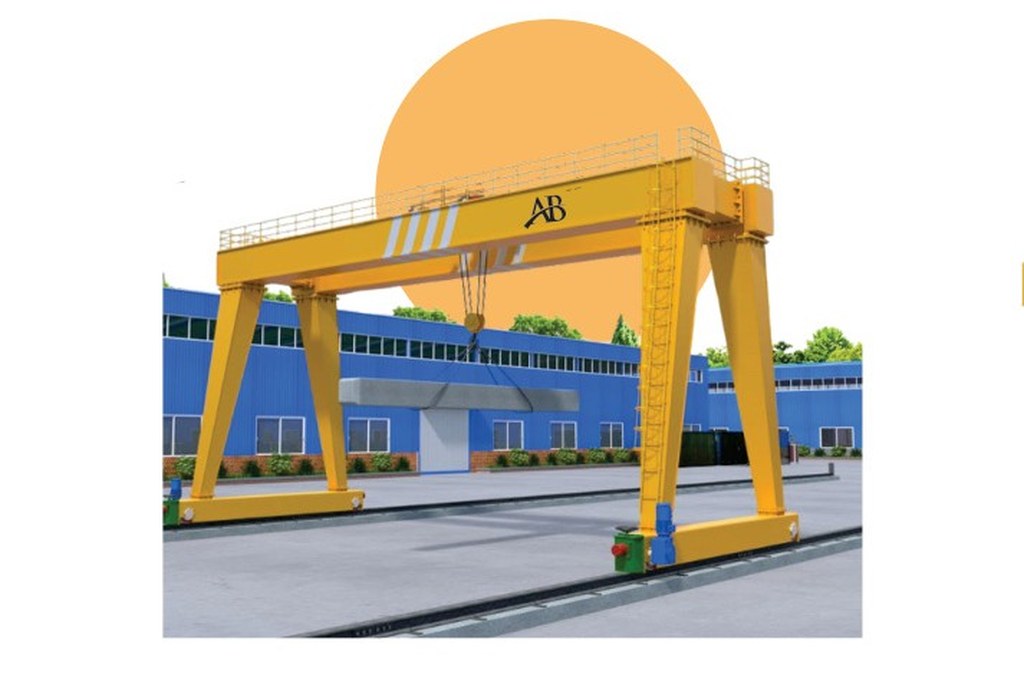

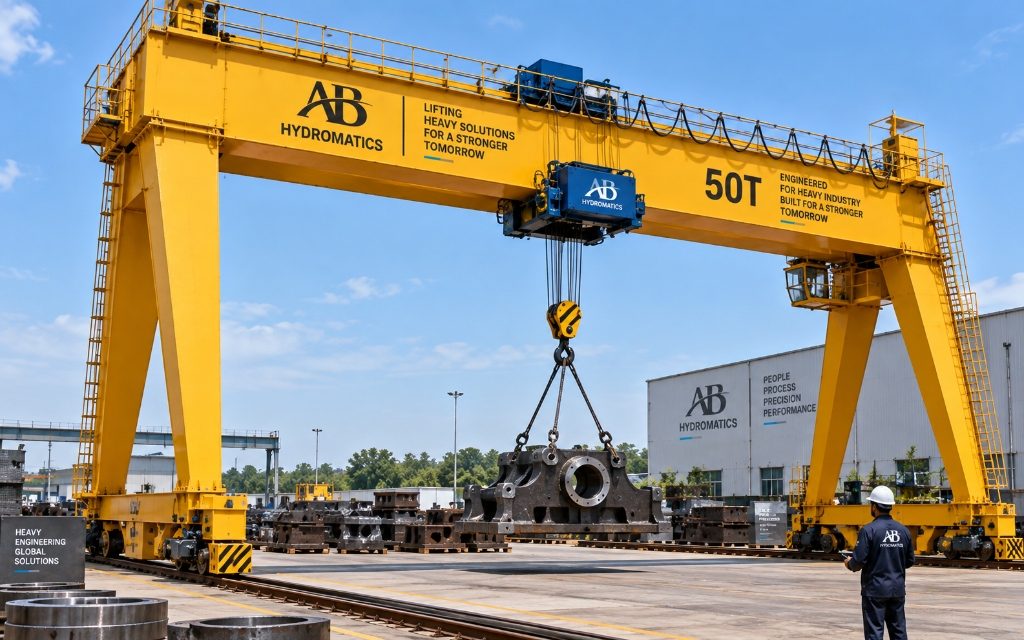

Tested at 125% OverloadCrane & Assembly Views:
Safety & Compliance
Built with triple-redundant safety mechanisms.
Equipped with electro-hydraulic thruster brakes, rotary gear limit switches, gravity limit switches, overload cut-off cells, and shock-absorbing polyurethane buffers.
100% factory assembled and load-deflection tested in accordance with IS 3177 before site installation and commissioning.
Technical specifications
5 parametersGantry / Goliath Cranes Parameters
| Parameter | Specification |
|---|---|
| Gantry Configuration | Full-gantry (two legs) & Semi-gantry setups |
| Lifting Capacity | 5T - 100T |
| Travel System | Rail-mounted forged ground wheels with storm locks |
| Common Use Cases | Outdoor stockyards, ports, marble/granite yards, precast yards |
| Cantilever Option | Available with single or double side cantilevers |
