Jib & Pillar Cranes
Manufactured to IS 3177 / IS 3938 with fail-safe braking and VFD drive controls.

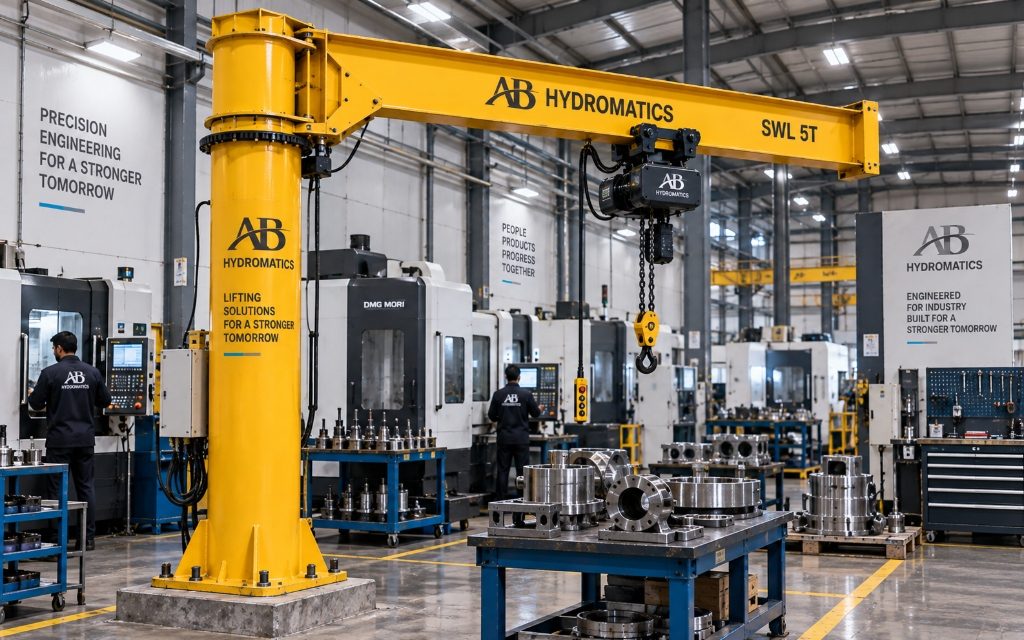

Localized material handling cranes mounted on walls or floor pillars. Provides 270° or 360° rotation for point-to-point lift support in assembly stations.
Tested at 125% OverloadCrane & Assembly Views:
Safety & Compliance
Built with triple-redundant safety mechanisms.
Equipped with electro-hydraulic thruster brakes, rotary gear limit switches, gravity limit switches, overload cut-off cells, and shock-absorbing polyurethane buffers.
100% factory assembled and load-deflection tested in accordance with IS 3177 before site installation and commissioning.
Technical specifications
5 parametersJib & Pillar Cranes Parameters
| Parameter | Specification |
|---|---|
| Mounting Options | Self-supporting floor pillar / Wall cantilever bracket |
| Rotation Range | 270° (Wall mounted) / 360° (Pillar mounted) |
| Lifting Capacity | 0.5T - 5T |
| Jib Arm Radius | Up to 6 meters working reach |
| Rotation Drive | Manual slewing or motorized electric drive |
