Ball Valve
Manufactured to BS - 5351 / API 6D for bubble-tight sealing and long cycle life.
FLOEC Ball Valves Ball Valves are designed and manufactured in accordance with latest international standards like API 6D and BS 5351 to provide highest safety, efficiency and durability. FLOEC Three Piece and Two Piece design Ball Valves ensure efficiency, reliability and economy. FLOEC Three Piece Ball Valves are maintenance friendly and suitable for on-line maintenance. FLOEC Ball Valves Ball Valves have blow-out proof stem and specially designed stem seal guarantees Zero passing through the gland for a long period.

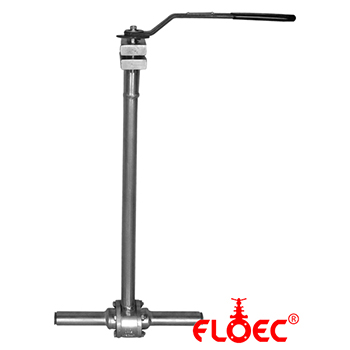

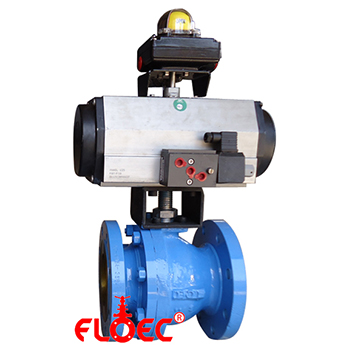

2 Configurations AvailableBall Valve Big · Ball Valve Cryogenic
Precision engineered for zero passing & heavy service.
Floec Metal seated Ball Valves are a latest edition and have manufactured to leakage class IV and V according to customer’s requirements. We could achieve this due to continuous R & D in our design and production. In addition, we have in-house fire safe test facility and the actual fire test was witnessed by internationally reputed TPI agency Bureau Veritas successfully.
Key Capability Highlights
- Size Coverage: 15 NB through 600 NB
- Pressure Range: ASME/BS 150#, 300#, 600#, 800#, 900#, 1500#, 2500#
- Compliance Standard: BS - 5351 / API 6D
100% factory hydrotested to API 598 / BS 6755 Part-I. Available in customized metallurgy, port openings, and automated pneumatic/electric actuator assemblies.
Ball Valve Engineering Parameters
| Parameter | Specification Range & Standards |
|---|---|
| Size Range | 15 NB through 600 NB |
| Pressure Rating | ASME/BS 150#, 300#, 600#, 800#, 900#, 1500#, 2500# |
| Type | 3 piece/2 Piece/ 1Piece/Fire Safe/ Non Fire Safe |
| End Connection | Flanged/RTJ/Victaulic/ Screwed/ Socket Weld/Butt-Weld |
| Operation | Wrench/ Manual Lever/Manual Gear/ Pneumatic and Motorized |
| Port Opening | Full/ Regular |
| Seat | Metal Seated/PTFE/ Carbon or Glass Filled Teflon/ Graphite |
| Ball | Floating/ Trunnion Mounted |
| Gasket & Packing | PTFE/ Glass Filled Teflon/ Graphite/Nylon |
| MOC | Refer Material Chart |
| Design Code | BS - 5351 / API 6D |
| Testing | API 598/API 607 |
| Inspection | 3rd Party/ Client/ Manufacturer |
Customized for your line fluid & operating temperature.
Available in standard Cast Carbon Steel (WCB/WCC), Austenitic Stainless Steels (SS304/SS316), Duplex/Super Duplex, Hastelloy, Alloy 20, and specialized soft/metal seats.
