- Valve Family

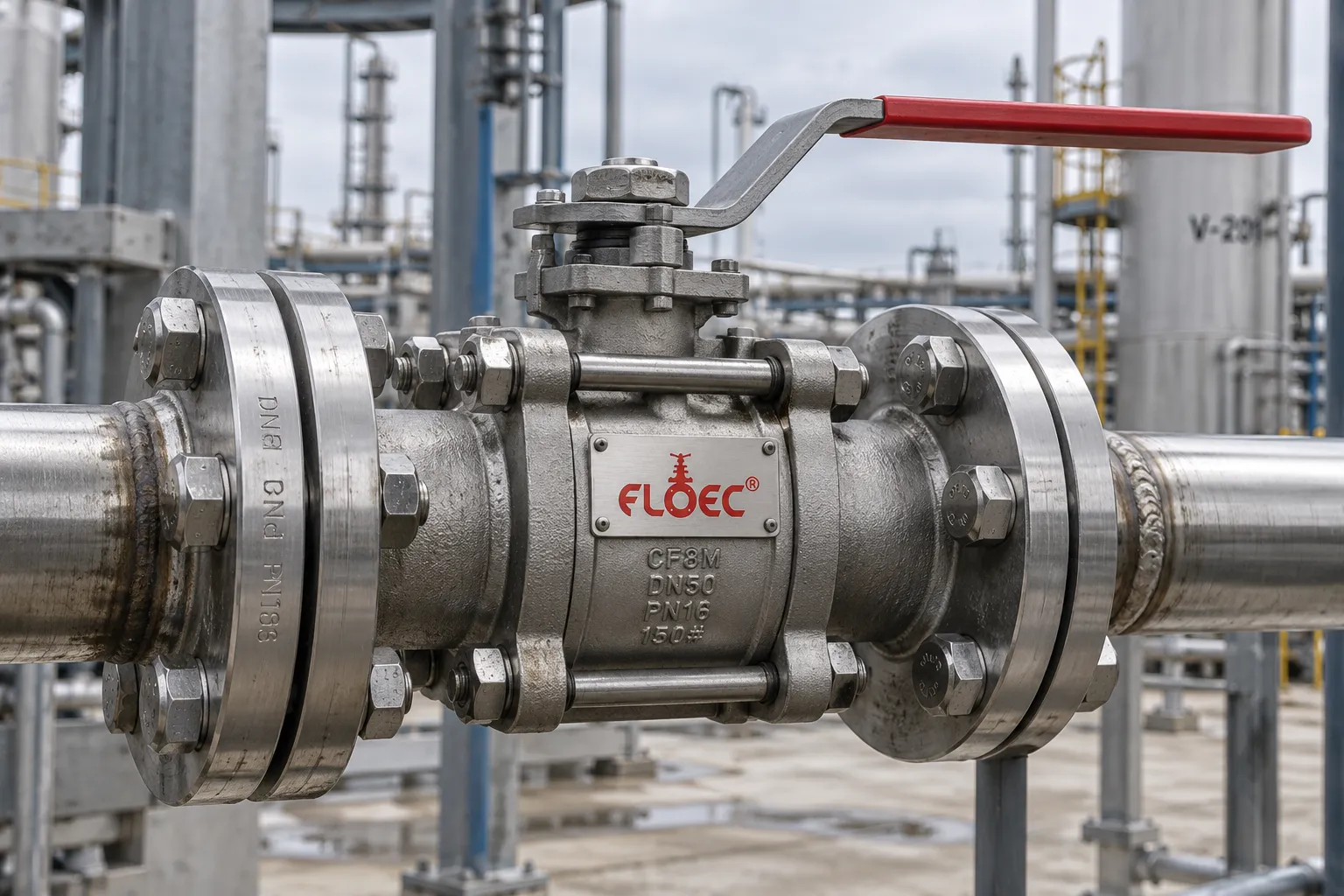

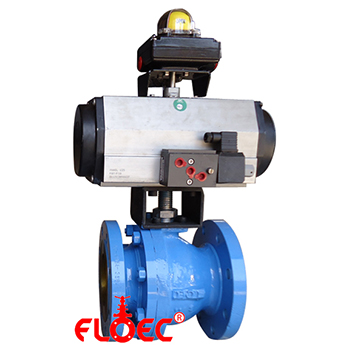

- Ball Valve
- Size Range
- 15 NB through 600 NB
- Pressure
- ASME/BS 150#, 300#, 600#, 800#, 900#, 1500#, 2500#
- Design Code
- BS - 5351 / API 6D
Ashwathi Controls Pvt. Ltd. · FLOEC®
Industrial Valves
A complete valve range, certified to global standards.
FLOEC® brand industrial valves conforming to ANSI, API, DIN, BS, MSS and IS standards. All ISO 9001:2015 certified and tested to API 598 / BS 6755. Available in cast carbon steel, stainless steel, duplex, super duplex, hastelloy and more.
11 product families · API/BS/ANSIKey engineering parameters
- Size Range
- 15 NB to 1200 NB (1/2" to 48")
- Pressure Class
- 150# to 2500# / PN10 to PN25
- Design Codes
- API 6D · BS 5351 · API 609 · BS 1873 · MSS
- Testing & QA
- 100% API 598 & BS 6755 Hydrotested
FLOEC® Valve Range
High-performance isolation & control valves.
Engineered by Ashwathi Controls Pvt. Ltd. for thermal power, chemical process, oil & gas, water infrastructure, and heavy plant service. Click any valve family to view dimensional specifications, seat materials, and available configurations.
- Valve Family

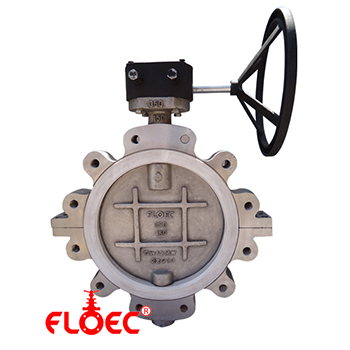

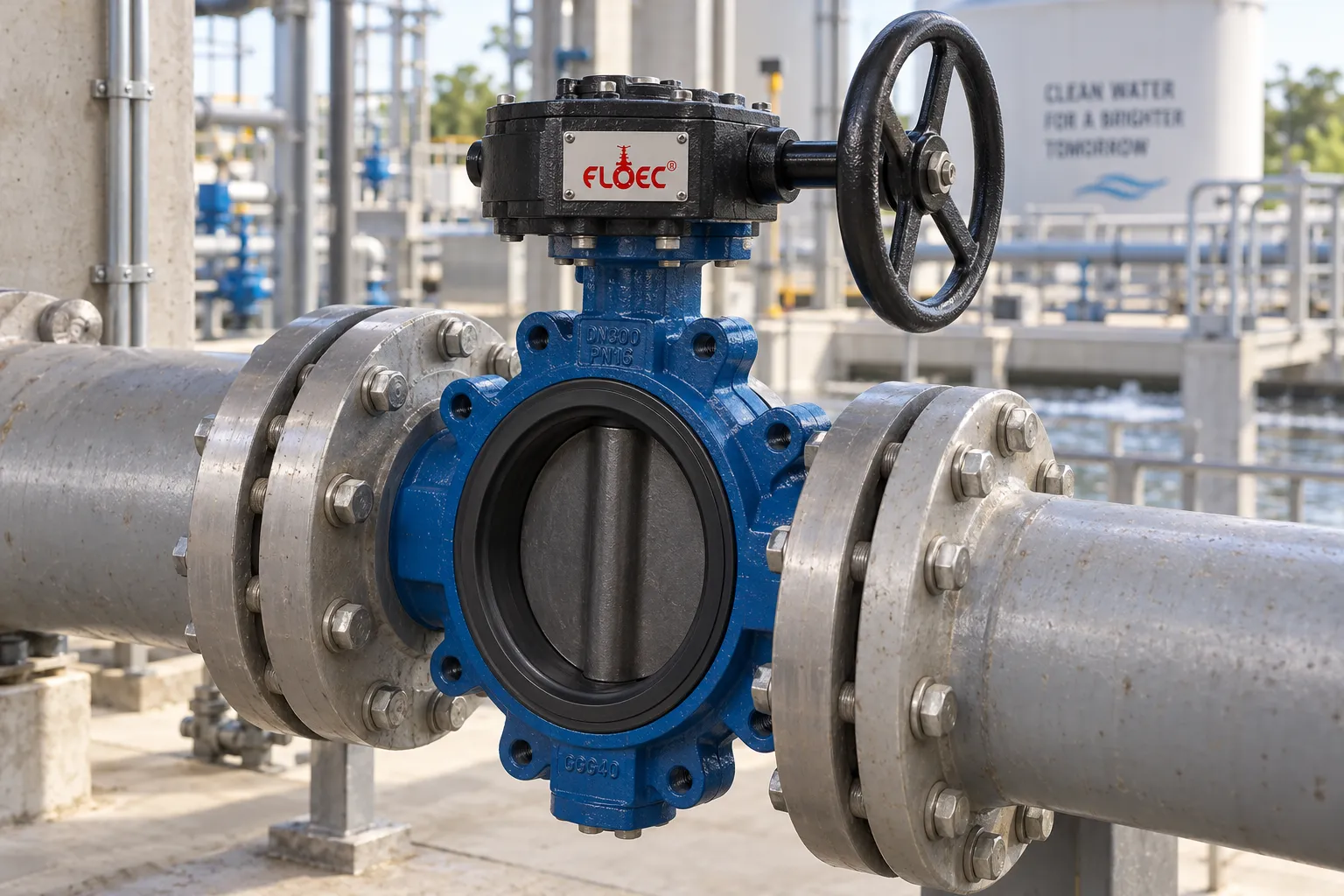

- Butterfly Valve
- Size Range
- 40 NB through 1200 NB
- Pressure
- ASME / BS 125# / 150# / 300# / PN10 / PN16 / PN25
- Design Code
- API - 609 / BS - 5155 / AWWA C504
- Valve Family

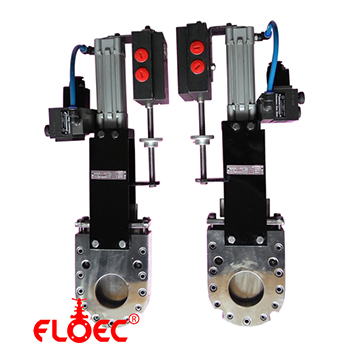

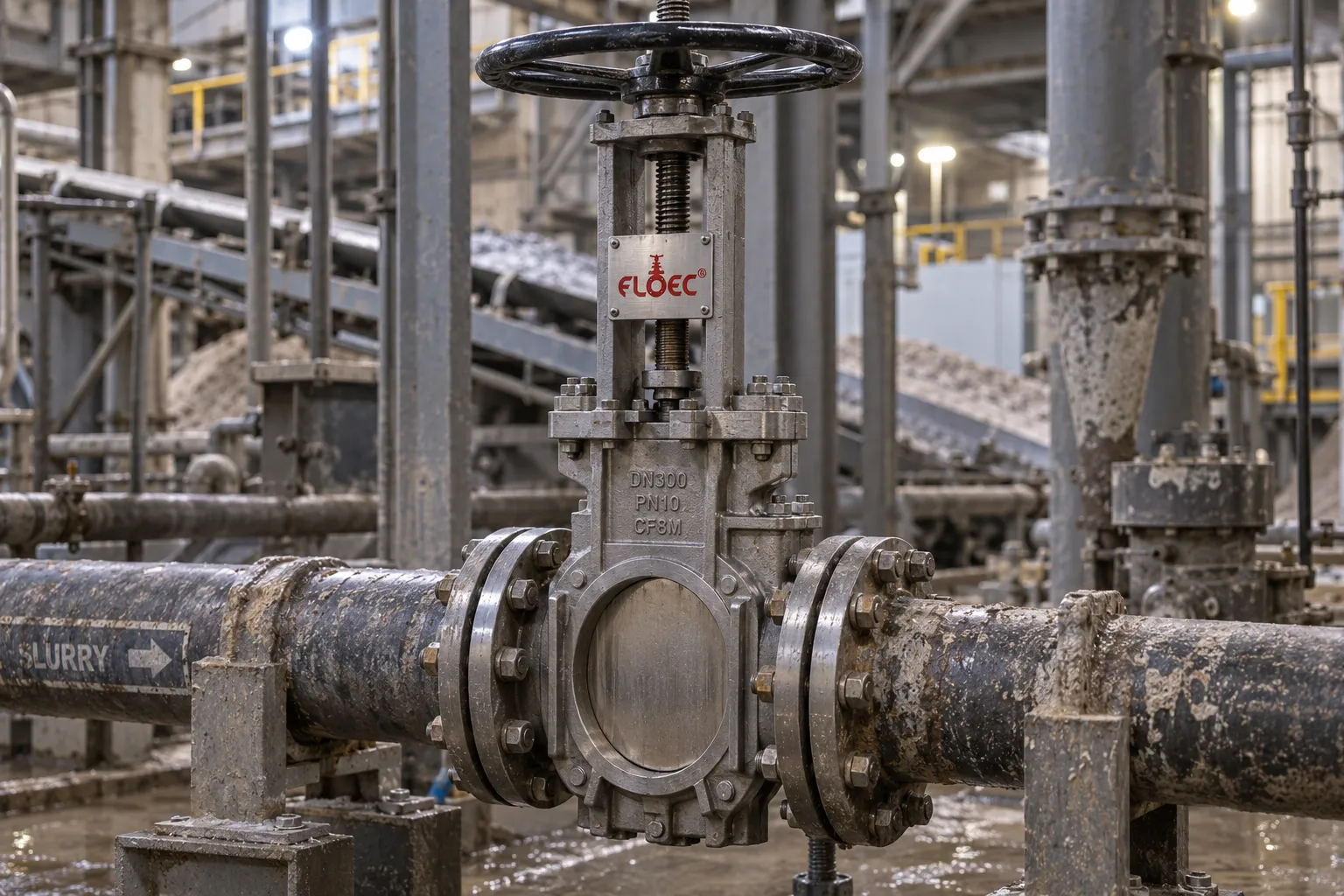

- Knife Gate Valve
- Size Range
- 50 NB through 900 NB
- Pressure
- MSS SP 81- 150# / PN16
- Design Code
- MSS SP-81
- Valve Family

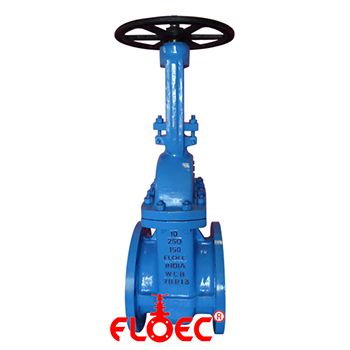

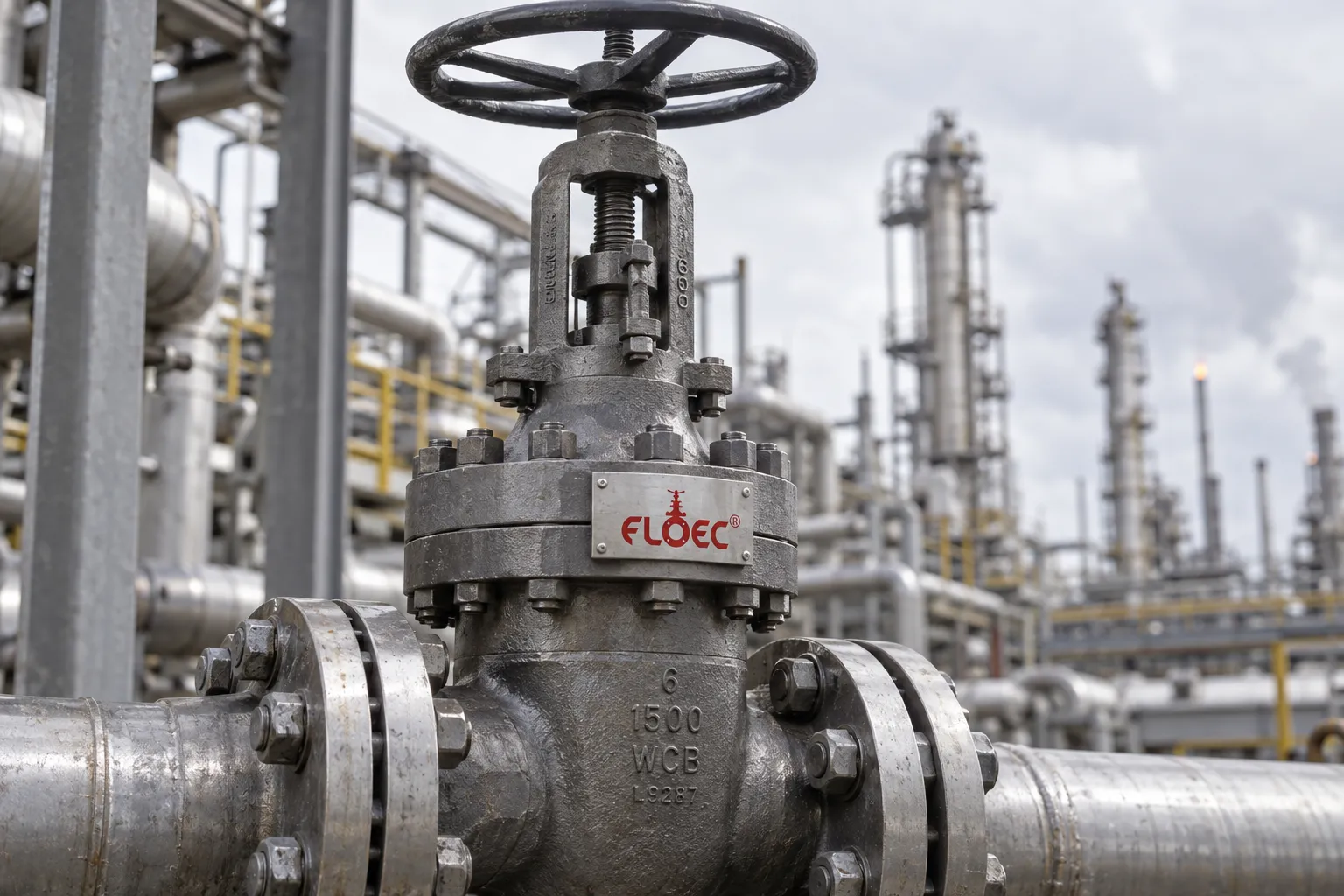

- Gate Valve
- Size Range
- 50 NB through 900 NB
- Pressure
- ASME - 150#, 300#, 400#, 600#, 900#, 1500#, 2500#
- Design Code
- API - 595 / 600 / 603 / 604 / 6D
- Valve Family

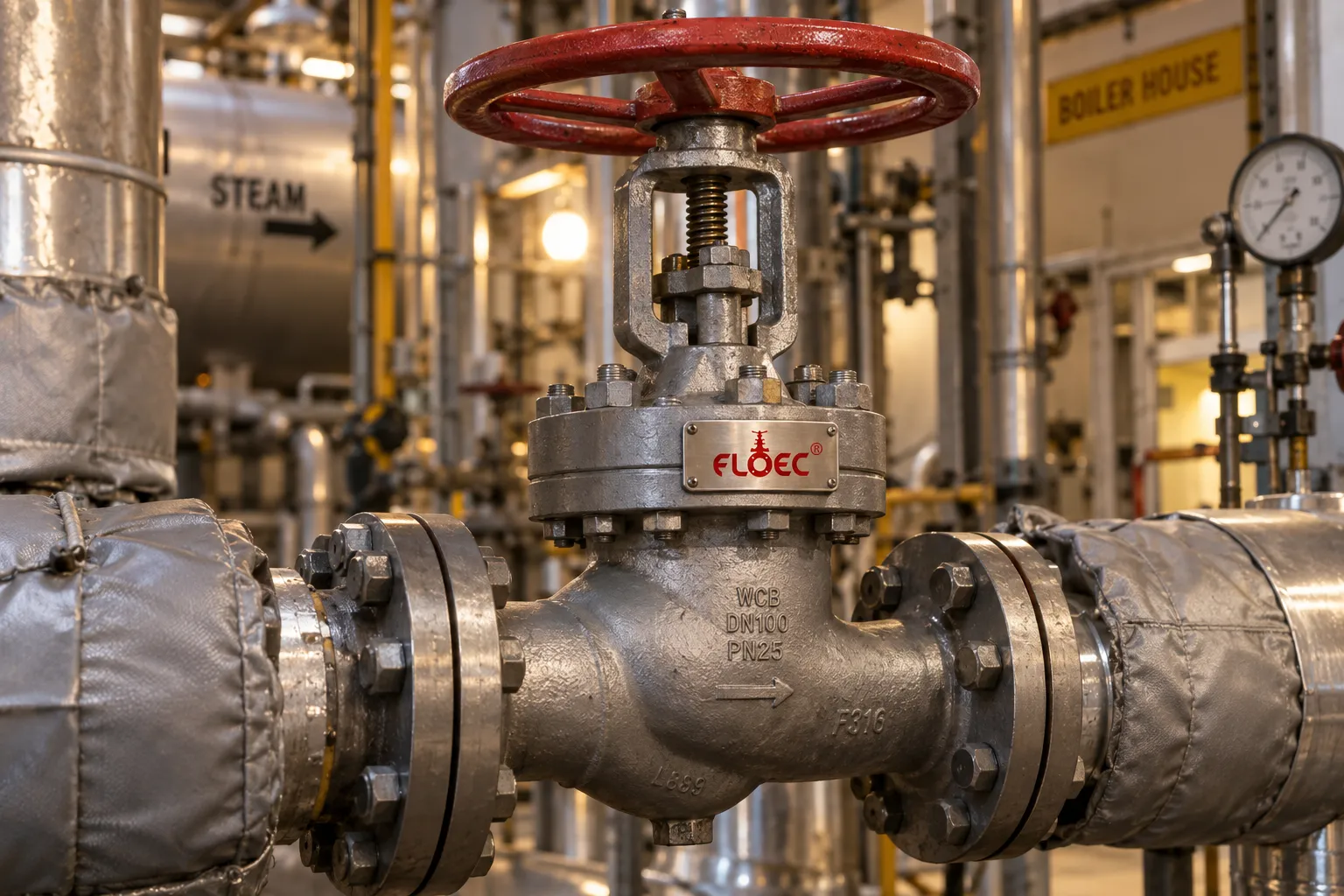

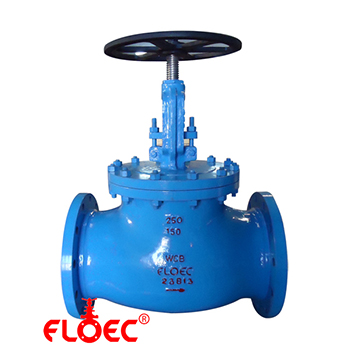

- Globe Valve
- Size Range
- 50 NB through 400 NB
- Pressure
- BS - 150#, 300#, 400#, 600#, 900#, 1500#, 2500#
- Design Code
- BS 1873, DIN - 2401
- Valve Family

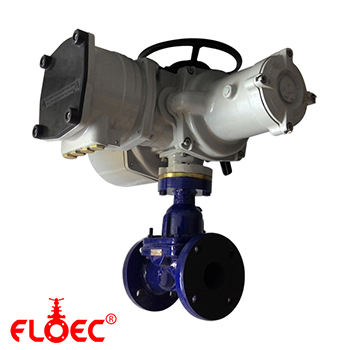

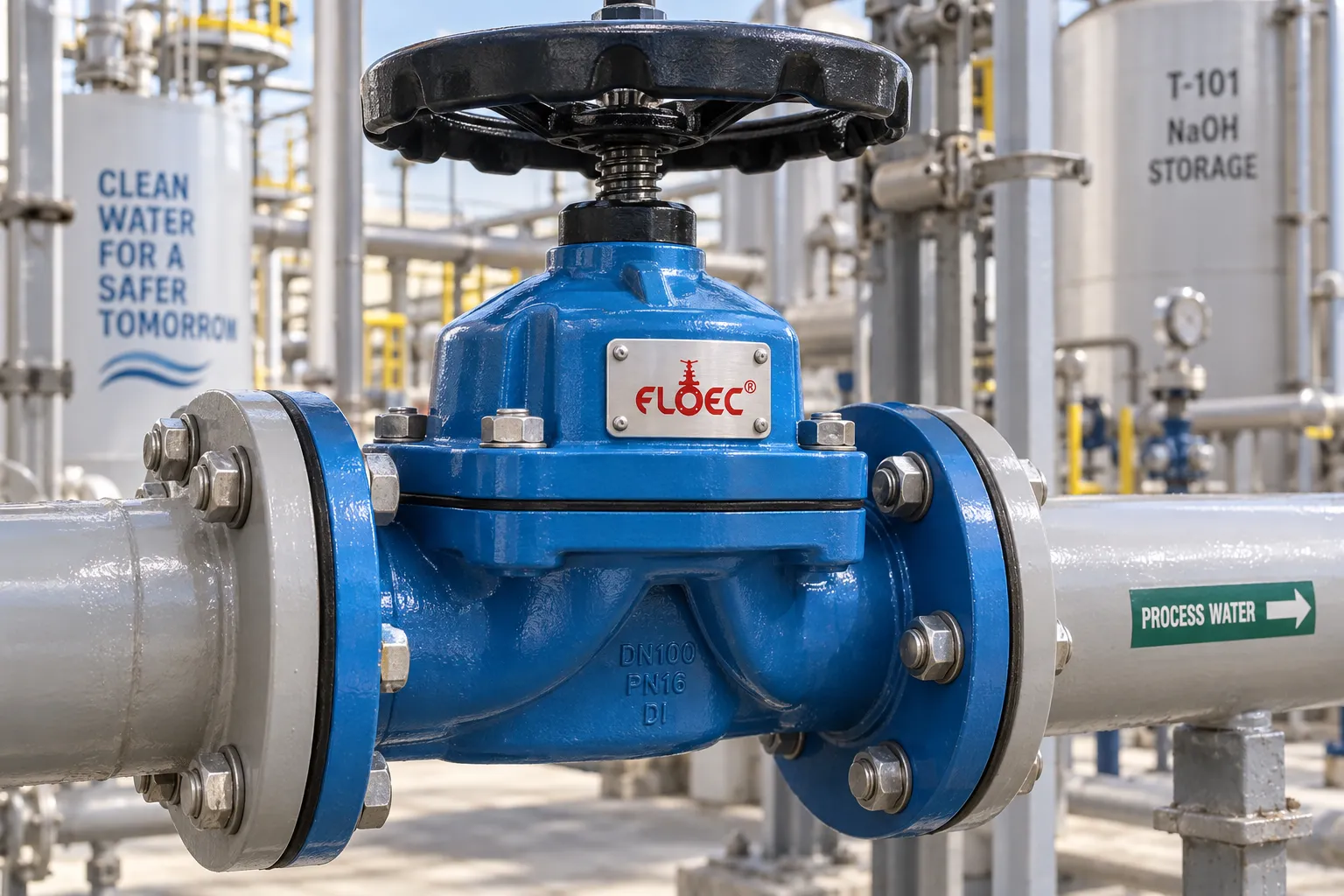

- Diaphragm Valve
- Size Range
- 15 NB through 250 NB
- Pressure
- ASME 125/ 150# / PN10 / PN16 / PN25
- Design Code
- BS - 5156
- Valve Family

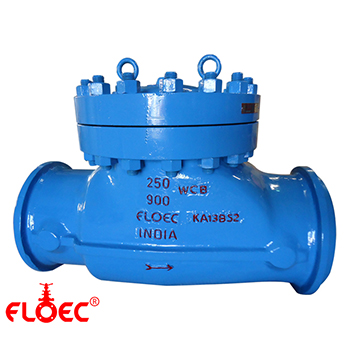

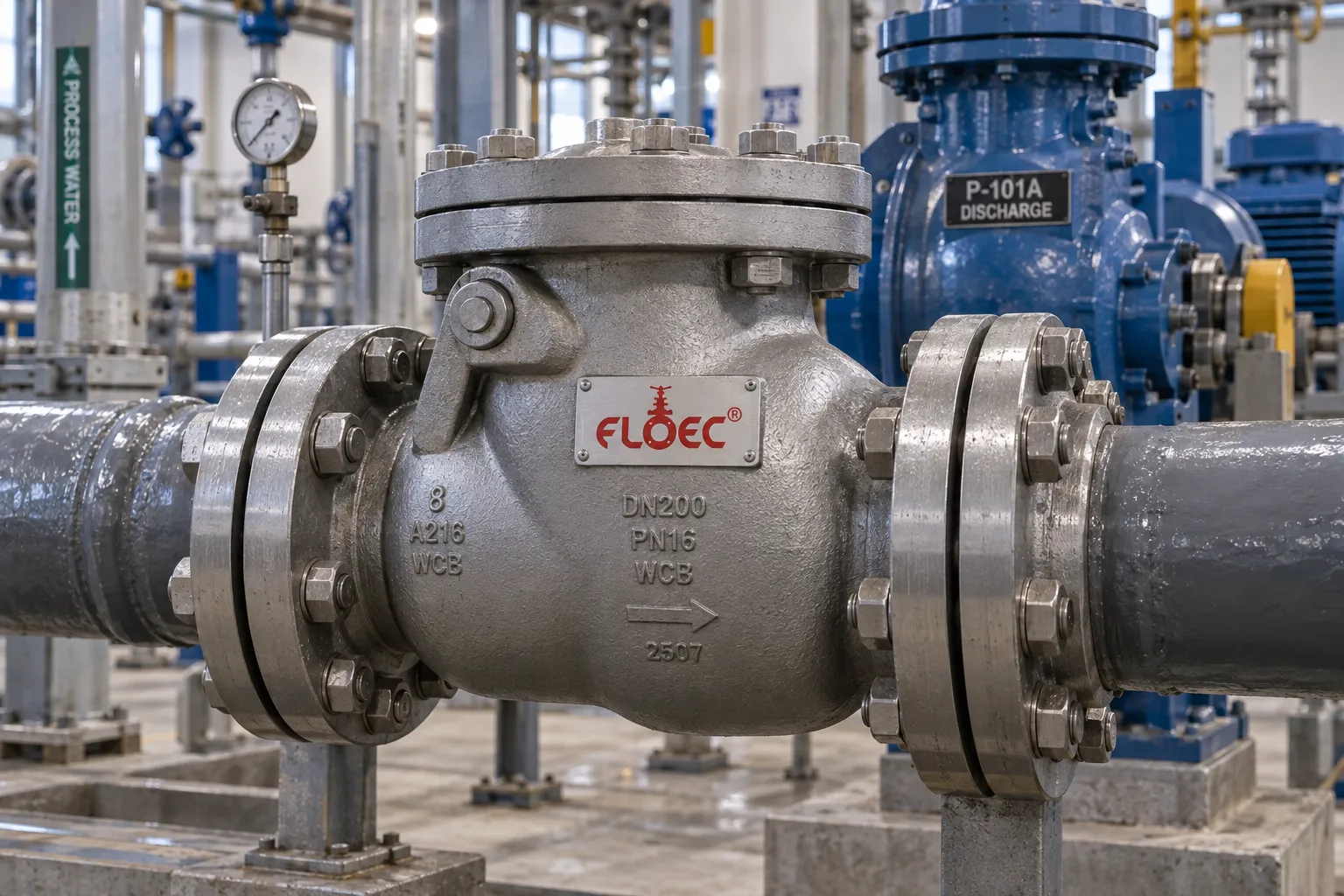

- Swing Check / Non-Return Valve
- Size Range
- 15 NB through 900 NB
- Pressure
- ASME - 150#, 300#, 400#, 600#, 900#, 1500#, 2500#
- Design Code
- BS 1868
- Valve Family

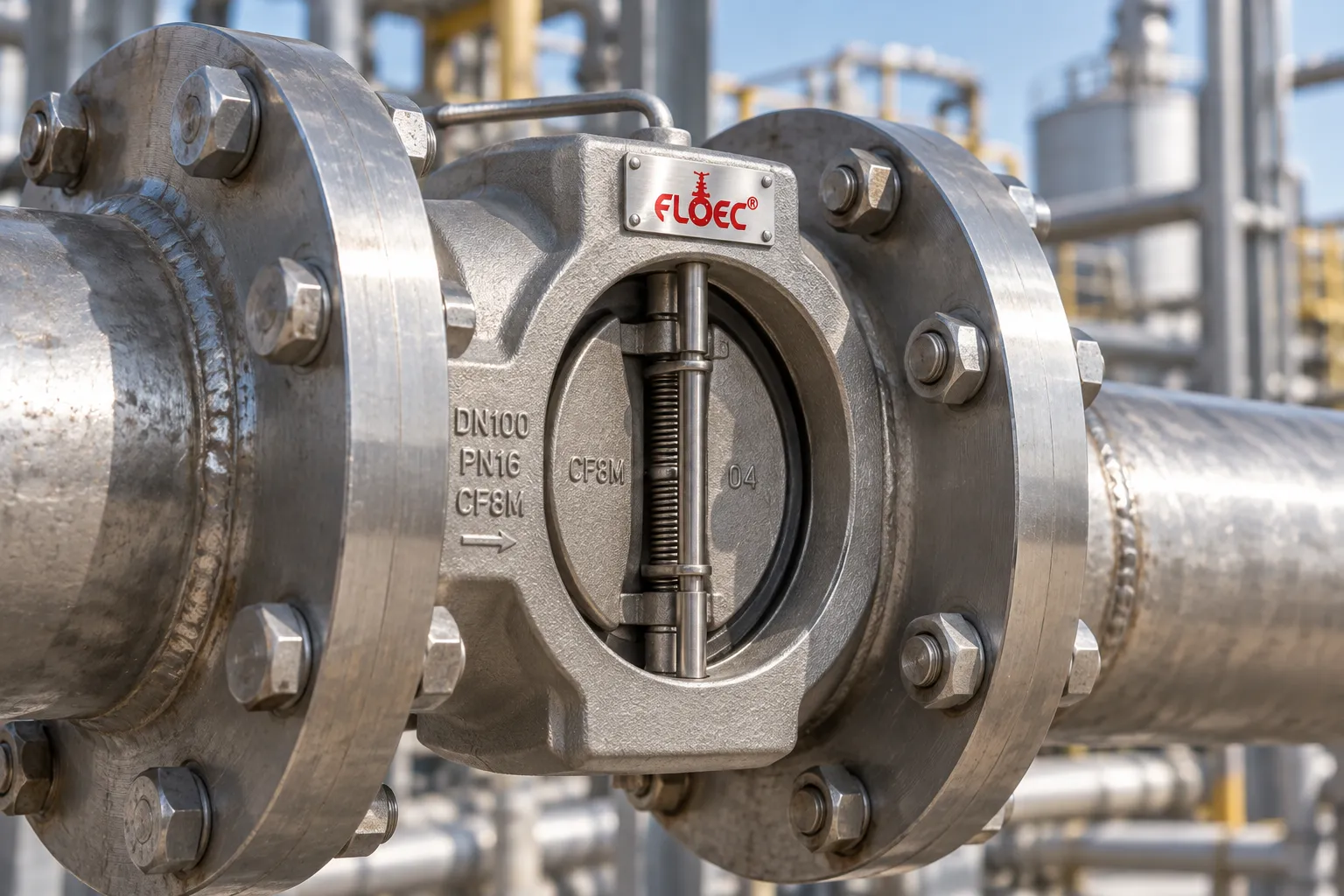

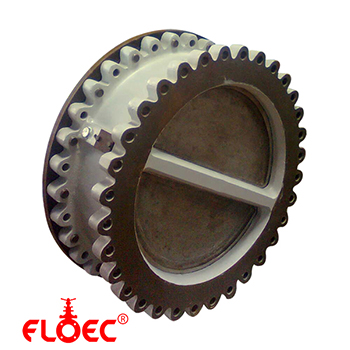

- Dual Disc / Plate Check Valve
- Size Range
- 50 NB through 900 NB
- Pressure
- ASME- 150#, 300#, 600#
- Design Code
- API - 594
- Valve Family

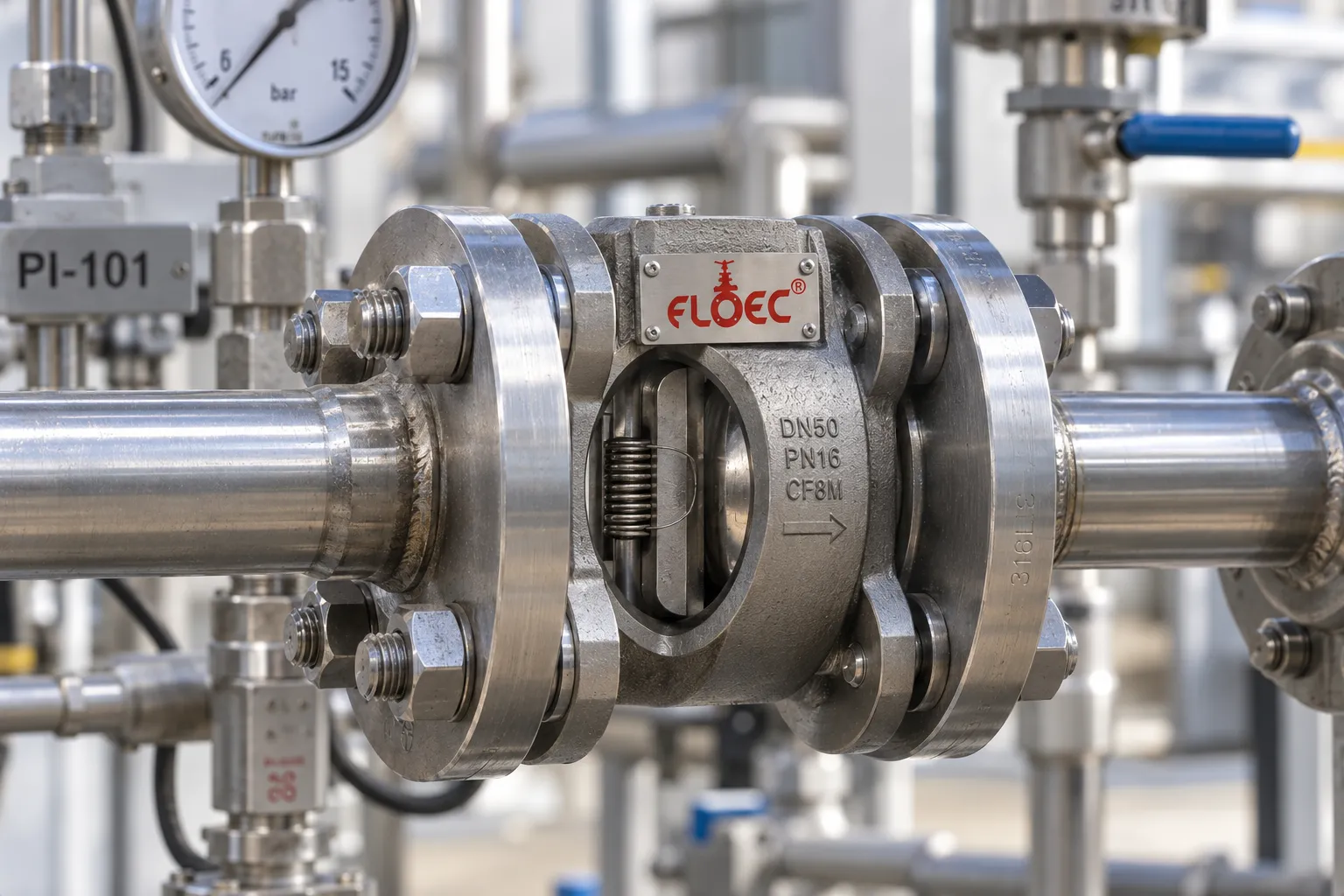

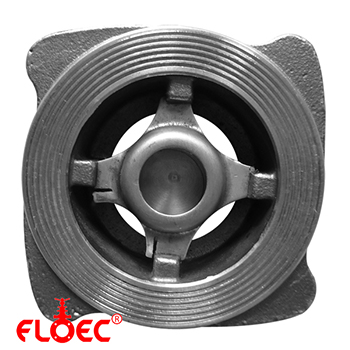

- Single Disc Spring Loaded Check Valve
- Size Range
- 15 NB through 150 NB
- Pressure
- ASME - 150#, 300#, 400#, 600#, 900#, 1500#, 2500#
- Design Code
- DIN - 3230
- Valve Family

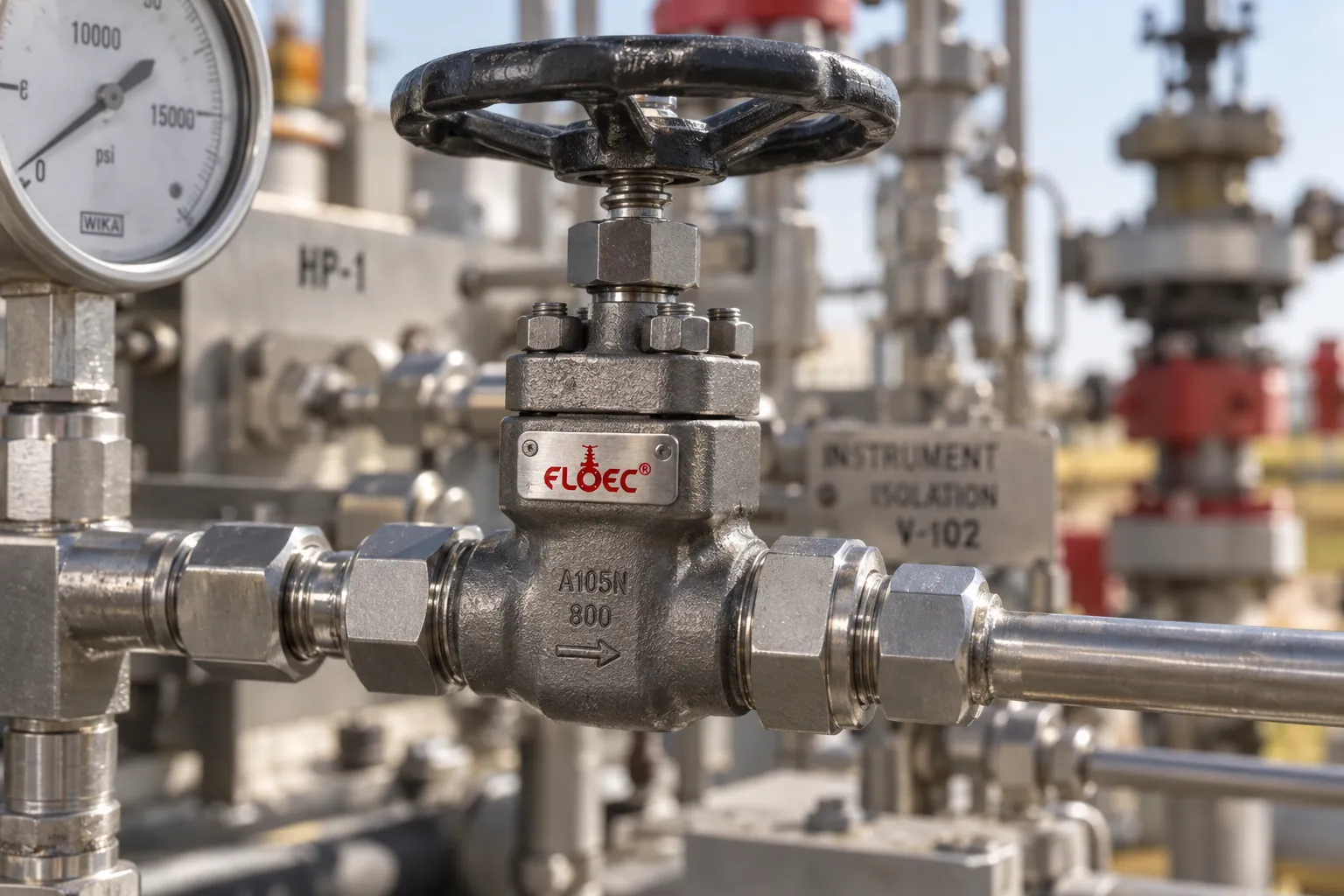

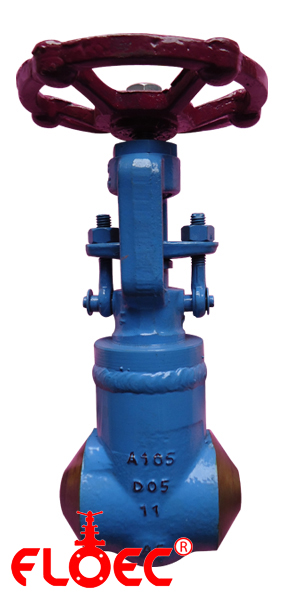

- Forged Steel Gate / Globe / NRV Valve
- Size Range
- 10 NB through 50 NB
- Pressure
- ASME - 800# through 2500#
- Design Code
- API - 602
- Valve Family

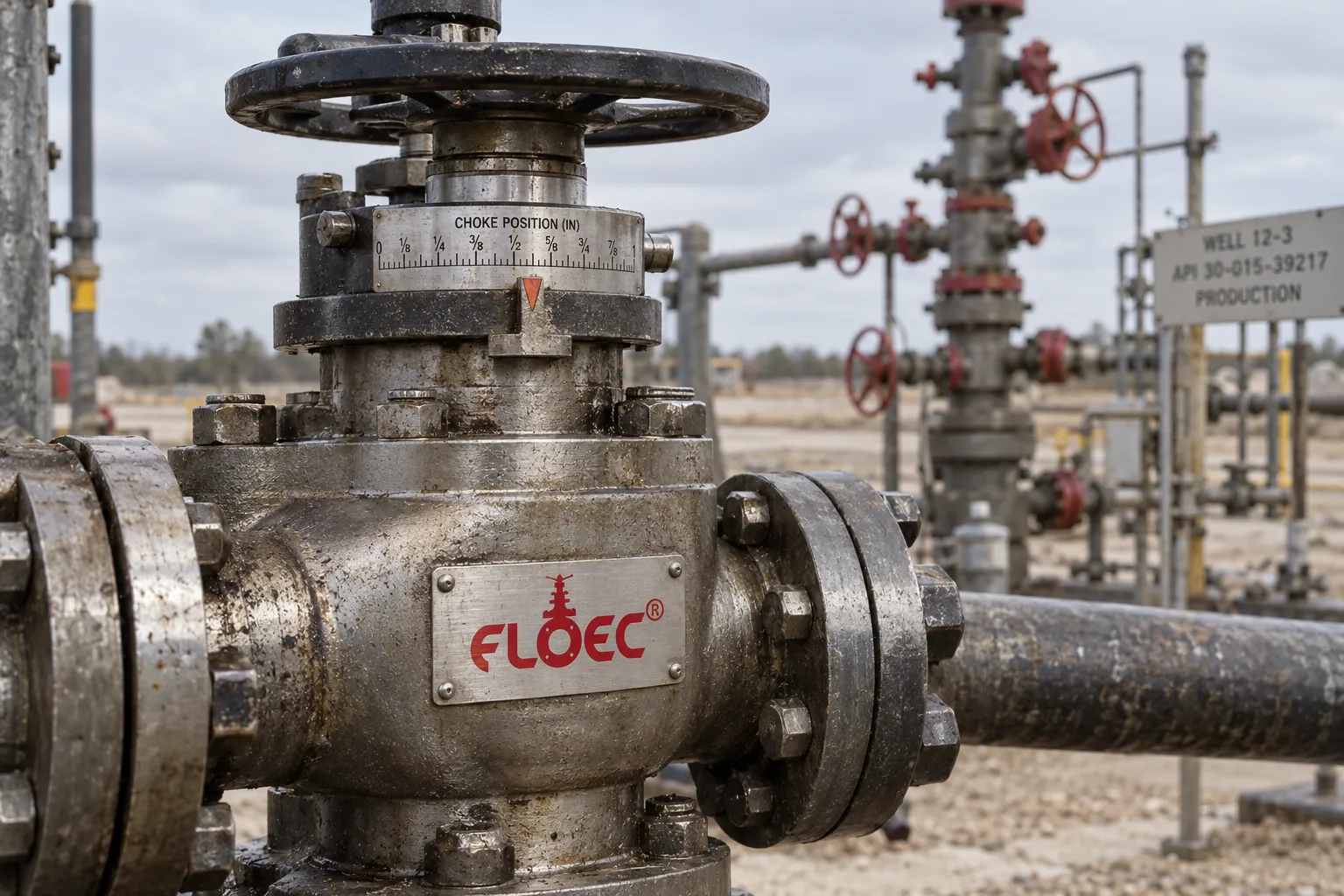

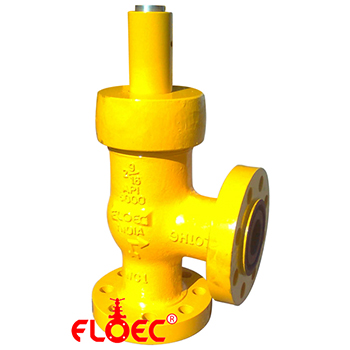

- Choke Valve
- Size Range
- Standard
- Pressure
- Class 150-2500
- Design Code
- API / BS Standard
Metallurgy & Sealing
Industrial-grade castings, forgings & trims.
We manufacture valves from high-grade casting and forged alloys to withstand elevated temperatures, abrasive slurries, high differential pressures, and aggressive corrosive chemicals. All raw castings are sourced from approved foundries and undergo 100% spectrometric chemical analysis and mechanical testing.
- 100% In-house hydrostatic & pneumatic seat testing per API 598
- In-house API 607 Fire-Safe testing witnessed by Bureau Veritas
- NACE MR0175 compliant metallurgy for sour gas and H2S service
- Micro-finished stems & seats for extended bubble-tight seal life
Material Of Construction (MOC)
Available Cast & Forged Alloys
Cast Carbon Steel WCB/WCCStainless Steel SS 304 / 304LStainless Steel SS 316 / 316LDuplex Stainless Steel (2205)Super Duplex SS (2507)Hastelloy B / CAlloy 20 / Monel 400Copper Alloys & BronzeSG / Ductile IronHigh-Tensile Cast Iron
Seating & Soft Goods
Trim & Seal Options
Metal to Metal (Stellite Gr. 6 / Cobalt-based)PTFE (Virgin / Carbon-Filled)RPTFE (Glass-Filled Reinforced Teflon)Flexible Graphite / Inconel Wire ReinforcedEPDM / Viton / Nitrile / Silicone ElastomersIntegrally Moulded Rubber Sleeve / Liner
Standards & Quality
Certified for severe process duties.
Every FLOEC® valve manufactured by Ashwathi Controls is certified to international design standards and subjected to calibrated hydrostatic shell, seat, and pneumatic backseat leakage testing prior to dispatch.
Direct Engineering Consultation
Need customized valves or special alloy trims?
Share your valve data sheet, line size, design pressure, temperature, and fluid media. Our valve application team will provide technical proposals and GA drawings.
Request Technical Proposal
