Butterfly Valve
Manufactured to API - 609 / BS - 5155 / AWWA C504 for bubble-tight sealing and long cycle life.
FLOEC Butterfly Valves Butterfly Valves, wafer type are designed with integrally moulded elastomer body sleeve especially for longer durability and easy performance. Integrally moulded sleeve ensures minimum resistance between the disc and the sleeve.

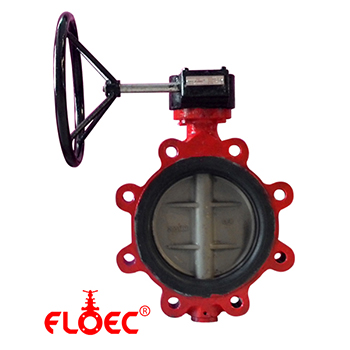

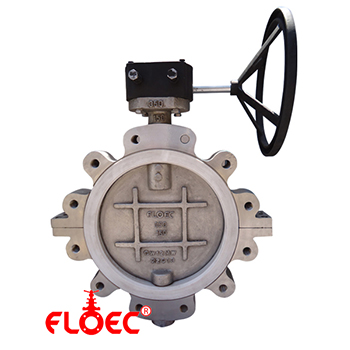

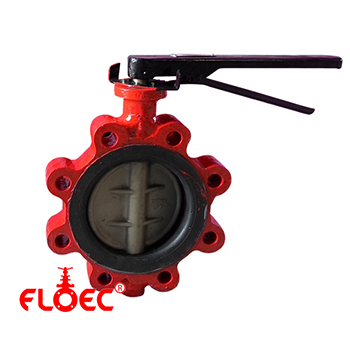

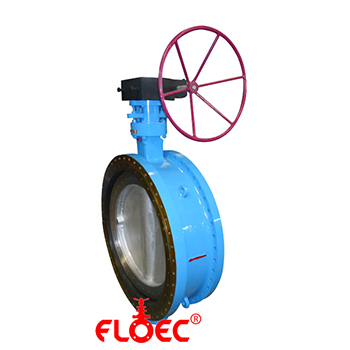

5 Configurations AvailableGear Operated Butterfly Valve · Metal Seated Butterfly Valve DN900-150 · Lugged Type-1 · Lugged Type · Pneumatic Operated Butterfly Valves
Precision engineered for zero passing & heavy service.
Integrally moulded elastomer liner prevents the dislocation of seat which enhances durability.
An ideal sealing between body, disc and stem is created by Flat surface on the disc and the liner at the top and bottom.
Elastomer body liner extends deep from the top to the bottom of disc shaft passages with integral 'O' ring to make sure that the working media does not contact the body material, thus the durability of the body is improved.
A primary seal provided at the top end of the body checks any foreign particles from entering the Valve, thus the life of the Stem is increased and its operation becomes smooth.
The Valve disc design makes it sure that there is a smooth straight flow, which minimizes pressure drop across the Valve.
Close tolerance maintained between the liner, the disc and the stem minimizes operation torque and causes smooth and easy operation.
Integrally moulded liner holds integral gasket with it at both ends of the Valve hence no Valve mounting gaskets are needed.
Top platform of the Valve is perfect to mount actuator or manual gearbox directly.
Key Capability Highlights
- Size Coverage: 40 NB through 1200 NB
- Pressure Range: ASME / BS 125# / 150# / 300# / PN10 / PN16 / PN25
- Compliance Standard: API - 609 / BS - 5155 / AWWA C504
100% factory hydrotested to API 598 / BS 6755 Part-I. Available in customized metallurgy, port openings, and automated pneumatic/electric actuator assemblies.
Butterfly Valve Engineering Parameters
| Parameter | Specification Range & Standards |
|---|---|
| Size Range | 40 NB through 1200 NB |
| Pressure Rating | ASME / BS 125# / 150# / 300# / PN10 / PN16 / PN25 |
| Type | Center Disc, Single / Double / Triple Offset Disc. Fully Lined Body / Unlined Body |
| End Connection | Wafer / Lugged / Flanged |
| Operation | Wrench / Manual Gear / Pneumatic and Motorized |
| Port Opening | Full |
| Seat | Metal to Metal / Natural / Neoprene / Nitrile / EPDM / Silicon / Vitone Rubber or PTFE |
| Disc | Solid-Dual Shaft / Single Shaft |
| Gasket & Packing | Equivalent or better than seat material |
| MOC | Ref Material of Construction & Pressure-Temperature Table |
| Design Code | API - 609 / BS - 5155 / AWWA C504 |
| Testing | API 598 / BS 6755 Part - I |
| Inspection | 3rd Party / Client / Manufacturer |
Customized for your line fluid & operating temperature.
Available in standard Cast Carbon Steel (WCB/WCC), Austenitic Stainless Steels (SS304/SS316), Duplex/Super Duplex, Hastelloy, Alloy 20, and specialized soft/metal seats.
