Gate Valve
Manufactured to API - 595 / 600 / 603 / 604 / 6D for bubble-tight sealing and long cycle life.
We produce all types of Gate Valves under our brand “FLOEC” covering all types like bolted bonnet, Pressure Seal Bonnet, Seal welded Bonnet, Union Bonnet etc.FLOEC Gate Valves in Solid Wedge, Flexible Wedge and Dual Disc Designs are made as per API-600 and API 6D. Pressure rating from 150# through 2500# in Forged and Cast Carbon Steel, Alloy Steel, Stainless Steel of all Grades and Super Alloy Steel like Alloy-20, Hastelloy-C, Duplex and Super Duplex Steels.FLOEC Gate Valves are offered with smooth machined full bore and full opening of Wedge to make certain that there is an eradication of additional pressure drop across the Valve. Screwed-in or Seal Welded Seat Rings guarantee perfect tightness for a longer period of service. In high temperature and high pressure Valves, Seat Rings are either integral with body or seal welded as per standard practice and process for highest perfection and safety.

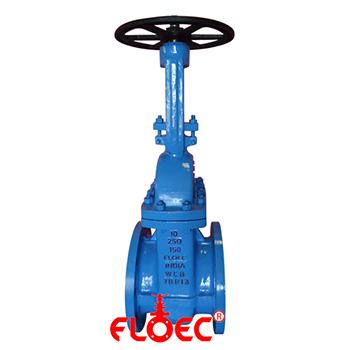

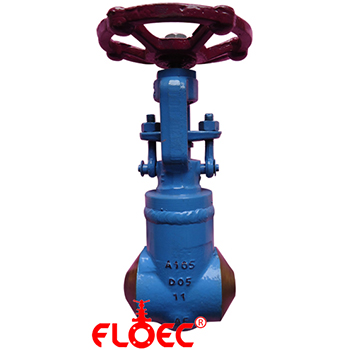

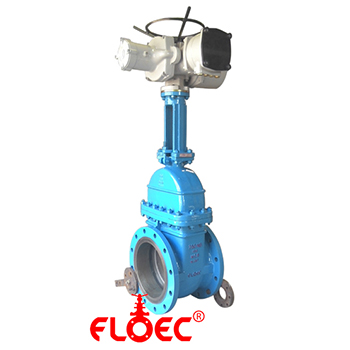

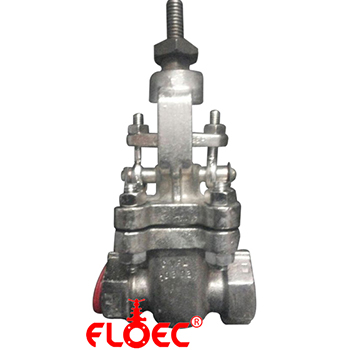

4 Configurations AvailableElectric Actuator Operated Gate Valve · Forged Gate Valve 1500# Seal Welded Bonnet · Gate Valve 150# · Monel Forged Gate Valve 800#
Precision engineered for zero passing & heavy service.
Key Capability Highlights
- Size Coverage: 50 NB through 900 NB
- Pressure Range: ASME - 150#, 300#, 400#, 600#, 900#, 1500#, 2500#
- Compliance Standard: API - 595 / 600 / 603 / 604 / 6D
100% factory hydrotested to API 598 / BS 6755 Part-I. Available in customized metallurgy, port openings, and automated pneumatic/electric actuator assemblies.
Gate Valve Engineering Parameters
| Parameter | Specification Range & Standards |
|---|---|
| Size Range | 50 NB through 900 NB |
| Pressure Rating | ASME - 150#, 300#, 400#, 600#, 900#, 1500#, 2500# |
| Type | OS & Y, Bolted / Pressure Seal Bonnet / Seal Welded Bonnet etc. |
| End Connection | Flanged / RTJ / Butt Weld |
| Operation | Hand Wheel/ Manual Gear / Electric Motor Actuator |
| Port Opening | Full |
| Seat | Integral / Renewable / Seal Welded |
| Wedge | Solid / Flexible / Dual Disc |
| Gasket & Packing | PTFE / Graphite / Spiral Wound / Ring Joint |
| MOC | Refer Material Chart |
| Design Code | API - 595 / 600 / 603 / 604 / 6D |
| Testing | API 598 |
| Inspection | 3rd Party / Client / Manufacturer |
Customized for your line fluid & operating temperature.
Available in standard Cast Carbon Steel (WCB/WCC), Austenitic Stainless Steels (SS304/SS316), Duplex/Super Duplex, Hastelloy, Alloy 20, and specialized soft/metal seats.
