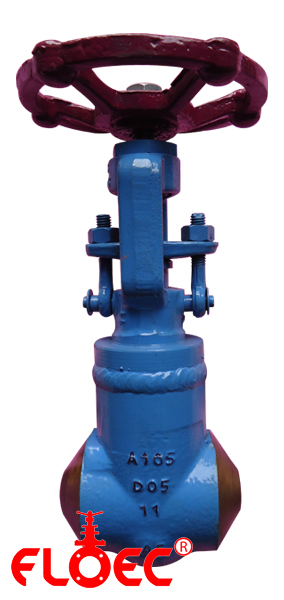

Forged Steel Gate / Globe / NRV Valve
Manufactured to API - 602 for bubble-tight sealing and long cycle life.
FLOEC Forged Steel Gate/Globe/Non-Return Valves are for high pressure applications have compact design and are manufactured as per API 602 and are perfect for small Pipelines up to 50NB. They come with a choice of Threaded or Socket Weld ends. The Hard Faced Trim material guarantees faultless Sealing and durability. They are perfectly machined and are provided with a Lapped Back Seat in case of Gate and Globe types so that the Gland Packing in stream can be replaced and/or repacked; when the Valve is in full open position so that it is highly safe, and cost-effective.
1 Configurations AvailablePrecision engineered for zero passing & heavy service.
FLOEC compact design Gate/Globe/Non-Return Valves are manufactured in a wide-ranging materials like Forged Carbon Steel in compliance to A105, Forged Alloy Steel like LF2, F11, F22; F51 and Forged Stainless Steel like F304, F304L, F316 and F-316L. The sizes available are from 10NB through 50NB and pressure rating from ASME 800# through 2500#.
FLOEC range of Forged Steel Valves contains Forged Steel Globe Valves, Forged Steel Non Return Valves and Forged Steel Gate Valves
Key Capability Highlights
- Size Coverage: 10 NB through 50 NB
- Pressure Range: ASME - 800# through 2500#
- Compliance Standard: API - 602
100% factory hydrotested to API 598 / BS 6755 Part-I. Available in customized metallurgy, port openings, and automated pneumatic/electric actuator assemblies.
Forged Steel Gate / Globe / NRV Valve Engineering Parameters
| Parameter | Specification Range & Standards |
|---|---|
| Size Range | 10 NB through 50 NB |
| Pressure Rating | ASME - 800# through 2500# |
| Type | Bolted Bonnet / Seal Welded Bonnet OS & Y |
| End Connection | Screwed / Socket Weld |
| Operation | Hand Wheel / Electrical |
| Port Opening | Full / Regular |
| Seat | Renewable / Seal Welded |
| Wedge/Disc | Solid |
| Gasket & Packing | Spiral Wound / Graphite |
| MOC | Refer Material Chart |
| Design Code | API - 602 |
| Testing | API - 598 |
| Inspection | 3rd Party / Client / Manufacturer |
Customized for your line fluid & operating temperature.
Available in standard Cast Carbon Steel (WCB/WCC), Austenitic Stainless Steels (SS304/SS316), Duplex/Super Duplex, Hastelloy, Alloy 20, and specialized soft/metal seats.
