Globe Valve
Manufactured to BS 1873, DIN - 2401 for bubble-tight sealing and long cycle life.
We make all varieties of Globe Valves like On-Off Disc, Control Disc and Parabolic Disc under the brand name FLOEC.FLOEC Globe Valves are produced with materials like C.I, SG IRON, WCB, LCB, WC-1, WC-6, WC-9, CF-8, CF-8M, CF-3, CF-3M, CN-7M, CD4-Cu., Hastelloy etc. The Product range commences from 06 NB to 400 NB and pressure rating from BS/ASME 150# through 2500# and from PN-10 through PN-250. Stellite/Hard faced trim are offered in all Valves of 600# and higher ratings as a unique standard of FLOEC Valves, where as for lower ratings it is offered when demanded.

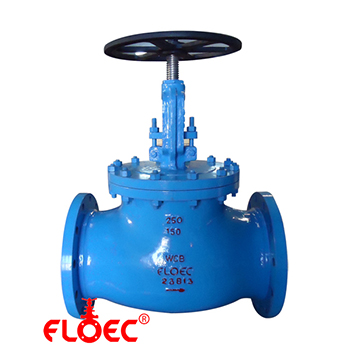

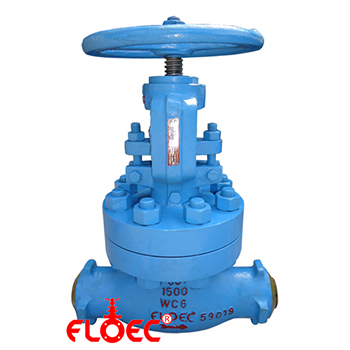

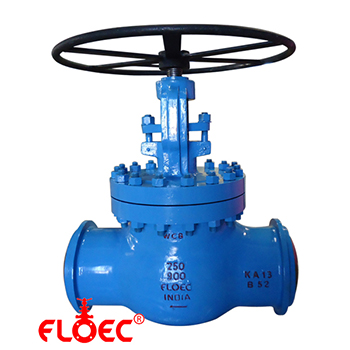

3 Configurations AvailableGlobe Valve 1500# · Globe Valve 900# · Globe Valve 150#
Precision engineered for zero passing & heavy service.
FLOECGlobe Valves are precisely designed to guarantee 100% smooth flow area to decrease pressure drop across the Valve. Specifically designed Seat and Packing material are offered for superheated steam and high temperature oils and fluids to make certain that it is easy to service and also durable. It is accurately machined and has a lapped backseat which aids in replacing Gland Packing when the Valve is in full stream.
The standard production limits up to 400 NB, but it is also customized in larger sizes, higher pressure ratings, with special material of construction.
FLOEC Globe Valves are checked and certified by our Q. C. Department and also by the Clients or any Third Party Inspection by an internationally reputed agency.
Key Capability Highlights
- Size Coverage: 50 NB through 400 NB
- Pressure Range: BS - 150#, 300#, 400#, 600#, 900#, 1500#, 2500#
- Compliance Standard: BS 1873, DIN - 2401
100% factory hydrotested to API 598 / BS 6755 Part-I. Available in customized metallurgy, port openings, and automated pneumatic/electric actuator assemblies.
Globe Valve Engineering Parameters
| Parameter | Specification Range & Standards |
|---|---|
| Size Range | 50 NB through 400 NB |
| Pressure Rating | BS - 150#, 300#, 400#, 600#, 900#, 1500#, 2500# |
| Type | OS & Y, Bolted / Pressure Seal / Seal Welded Bonnet |
| End Connection | Flanged / Butt Weld |
| Operation | Hand Wheel / Manual Gear / Electric Motor Actuator |
| Port Opening | Full |
| Seat | Integral / Renewable / Seal Welded |
| Disc | Swivel - Flat / Taper / Control / Parabolic |
| Gasket & Packing | PTFE / Graphite / Spiral Wound / Ring Joint |
| MOC | Refer Material Chart |
| Design Code | BS 1873, DIN - 2401 |
| Testing | BS 6755 Part-I |
| Inspection | 3rd Party / Client / Manufacturer |
Customized for your line fluid & operating temperature.
Available in standard Cast Carbon Steel (WCB/WCC), Austenitic Stainless Steels (SS304/SS316), Duplex/Super Duplex, Hastelloy, Alloy 20, and specialized soft/metal seats.
