Swing Check / Non-Return Valve

Manufactured to BS 1868 for bubble-tight sealing and long cycle life.

FLOECSwing Check/Non-Return Valves are designed and manufactured as per BS1868. Check Valves are widely essential in the Piping System of every field. Check Valves prevent reverse flow of fluid during the failure or abrupt shut-down of Piping System. Hence Check Valves should have very good Sealing efficiency.

Request quote for Swing Check / Non-Return Valve View technical specifications

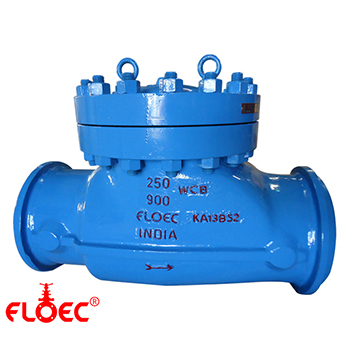

Swing Check / Non-Return Valve - Swing Check Valve 900#

1 Configurations Available

Engineering & Application

Precision engineered for zero passing & heavy service.

FLOEC Swing Check Valves have a precisely guided Swinging Disc through a Hinge. The Hinge and swivel Disc are linked to maintain adequate flexibility so that the sealing is smooth and efficient.FLOEC Swing Check Valves are available with Metal-to-Metal sealing to handle High Temperature and Pressure and Soft Sealing to take care of Pneumatic and Vacuum applications. The design guarantees that the Valve functions smoothly with a very nominal differential pressure from either side. The disc is designed to make it compact and light weight to make sure that there is least pressure drop across the Valve.

FLOEC Swing Check Valves are available in a diverse range of materials like Cast Iron, Cast Carbon Steel, and Cast Stainless Steel of all Grades, High Alloy Steels like Alloy-20, CD4MCu, Duplex and Super Duplex and Hastelloy etc. The size ranges from 50NB to 900NB and Pressure Ratings range from ASME 125# through 2500#.

Key Capability Highlights

Size Coverage: 15 NB through 900 NB
Pressure Range: ASME - 150#, 300#, 400#, 600#, 900#, 1500#, 2500#
Compliance Standard: BS 1868

100% factory hydrotested to API 598 / BS 6755 Part-I. Available in customized metallurgy, port openings, and automated pneumatic/electric actuator assemblies.

Technical specifications
