Compact Cylinder
Clean, low-friction air actuation built to industrial ISO standards.

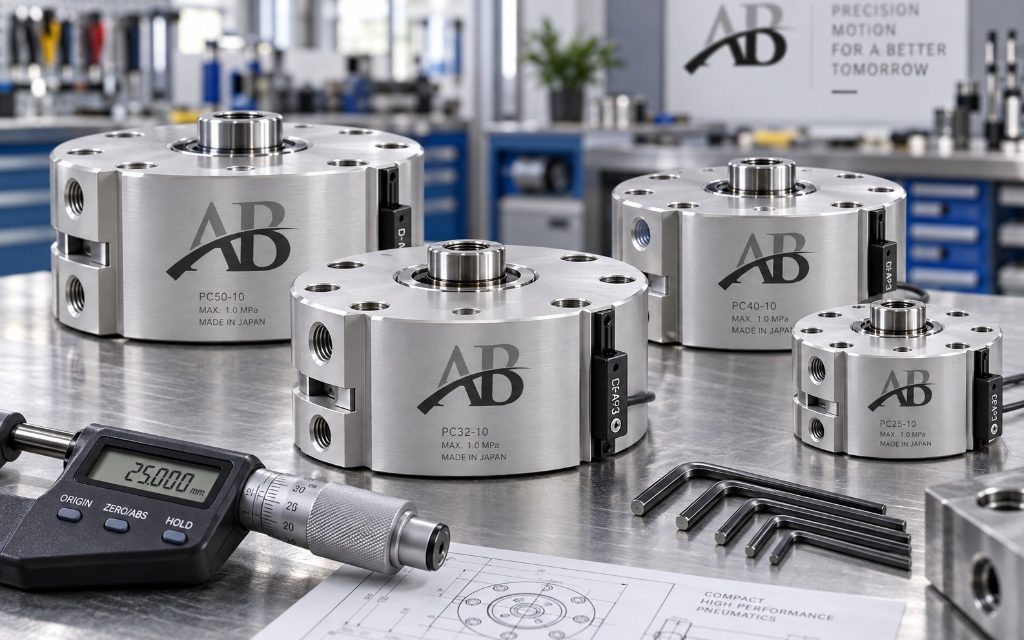

Space-saving compact and short-stroke pancake cylinders designed for tight automation spaces, high-force clamping, pressing, and high-speed positioning.
Tested at 1.5x Rated PressureAlternate Views:
Engineering detail
Tested at full pressure before dispatch.
Each pneumatic cylinder is assembled under controlled cleanroom conditions and subjected to full-stroke cycle testing at rated operating pressure with adjustable end-cushion verification.
Available with custom mounting clevises, high-temperature Viton seals, magnetic reed switches, and food-grade lubricants.
Technical specifications
5 parametersCompact Cylinder Parameters
| Parameter | Specification |
|---|---|
| Bore Range | 12 - 125 mm |
| Stroke Range | 5 - 100 mm |
| Profile Type | Compact / Pancake / Flat Body |
| Operating Pressure | 1.5 - 10 bar |
| Applications | Clamping, ejection, compact tooling, robotic grippers |
