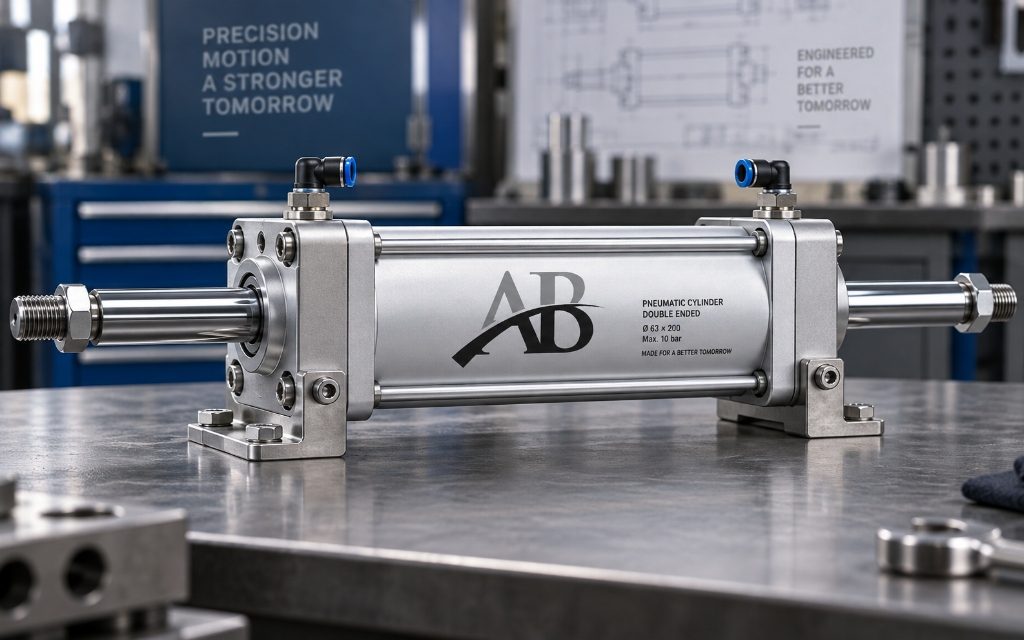

Double Shaft Cylinder
Clean, low-friction air actuation built to industrial ISO standards.
Through-rod / double-ended shaft pneumatic cylinders providing dual-directional mechanical output, high anti-rotation stability, and equal force in both extension and retraction strokes.
Tested at 1.5x Rated PressureAlternate Views:
Engineering detail
Tested at full pressure before dispatch.
Each pneumatic cylinder is assembled under controlled cleanroom conditions and subjected to full-stroke cycle testing at rated operating pressure with adjustable end-cushion verification.
Available with custom mounting clevises, high-temperature Viton seals, magnetic reed switches, and food-grade lubricants.
Technical specifications
6 parametersDouble Shaft Cylinder Parameters
| Parameter | Specification |
|---|---|
| Bore Range | 16 - 320 mm |
| Stroke Range | Up to 2,000 mm |
| Shaft Configuration | Through-Rod / Double Ended Shaft |
| Anti-Rotation | High guidance accuracy & load tolerance |
| Operating Pressure | Up to 10 bar |
| Applications | Pick & place, dual-sided tooling, linear transfer |
