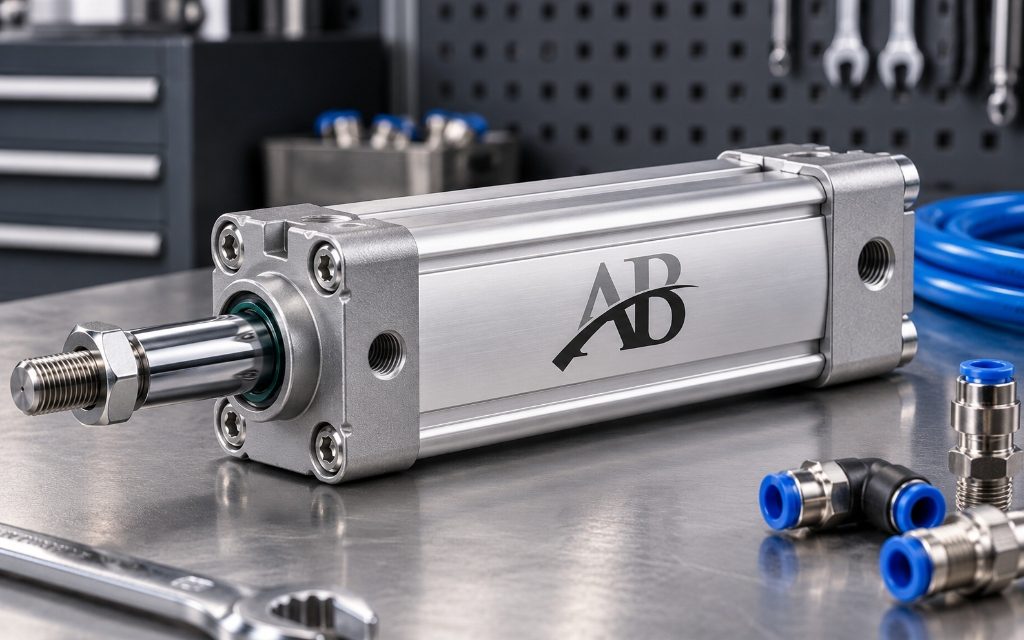

ISO Standard Cylinder
Clean, low-friction air actuation built to industrial ISO standards.
ISO 15552 / VDMA 24562 compliant double-acting pneumatic cylinders for general industrial automation. Available in aluminium and steel bodies with adjustable cushioning and a wide range of mounting options.
Tested at 1.5x Rated PressureAlternate Views:
Engineering detail
Tested at full pressure before dispatch.
Each pneumatic cylinder is assembled under controlled cleanroom conditions and subjected to full-stroke cycle testing at rated operating pressure with adjustable end-cushion verification.
Available with custom mounting clevises, high-temperature Viton seals, magnetic reed switches, and food-grade lubricants.
Technical specifications
6 parametersISO Standard Cylinder Parameters
| Parameter | Specification |
|---|---|
| Bore Range | 12 - 400 mm |
| Stroke | Up to 3,000 mm |
| Pressure | Up to 10 bar |
| Standard | ISO 15552 / VDMA 24562 |
| Body Material | Aluminium / Steel / Stainless Steel |
| Cushioning | Adjustable at both ends |
