AB Hydromatics · Pneumatic Actuation
Valves & Air Preparation Unit
Clean, low-friction air actuation built to industrial ISO standards.

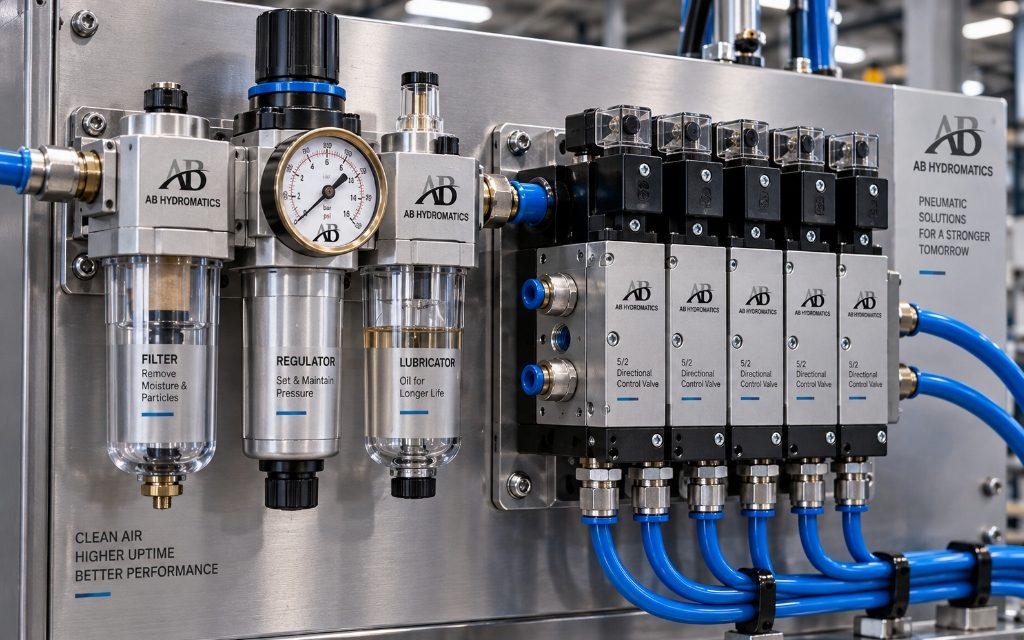

Comprehensive pneumatic control accessories including FRL units (Filter, Regulator, Lubricator), directional solenoid valves, mechanical air valves, quick exhaust valves, and precision regulators.
Tested at 1.5x Rated PressureAlternate Views:
Engineering detail
Tested at full pressure before dispatch.
Each pneumatic cylinder is assembled under controlled cleanroom conditions and subjected to full-stroke cycle testing at rated operating pressure with adjustable end-cushion verification.
Available with custom mounting clevises, high-temperature Viton seals, magnetic reed switches, and food-grade lubricants.
Technical specifications
6 parametersValves & Air Preparation Unit Parameters
| Parameter | Specification |
|---|---|
| FRL Components | Air Filter, Pressure Regulator, Mist Lubricator |
| Valve Types | 5/2, 3/2 Solenoid Valves, Manifold Mounted |
| Port Sizes | G 1/8" to G 1" |
| Filtration Rating | 5 µm to 40 µm |
| Pressure Adjustment | 0.5 - 10 bar |
| Media | Compressed Air (Filtered & Lubricated) |
